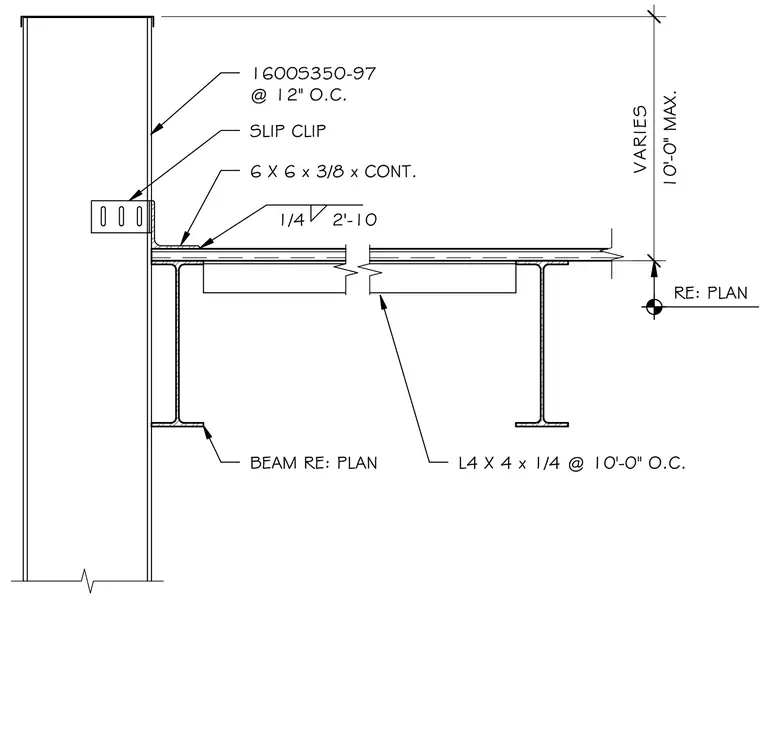

Cold-formed steel studs measuring 1600S350-97 spaced at twelve inches on center connect to a structural steel beam via a slip clip and a continuous 6x6x3/8-inch angle welded with a one-quarter-inch fillet weld. An angle measuring 4x4x1/4-inch spans at ten inches on center with a maximum span of ten feet per plan. The vertical height varies up to ten feet maximum.
6 X 6 x 3/8 x CONT. BEAM RE: PLAN L4 X 4 x 1/4 @ 10'-0" O.C. 10'-0" MAX. VARIES 1600S350-97 @ 12" O.C. RE: PLAN 1/4 2'-10 SLIP CLIP
