Structural · S-6HPYY

Typical Concrete Encased Steel Column

Materials

Concrete Steel

Elements

Columns Floors / Slabs Decks Reinforcing

Connections

Rebar Splice / Development

About this detail

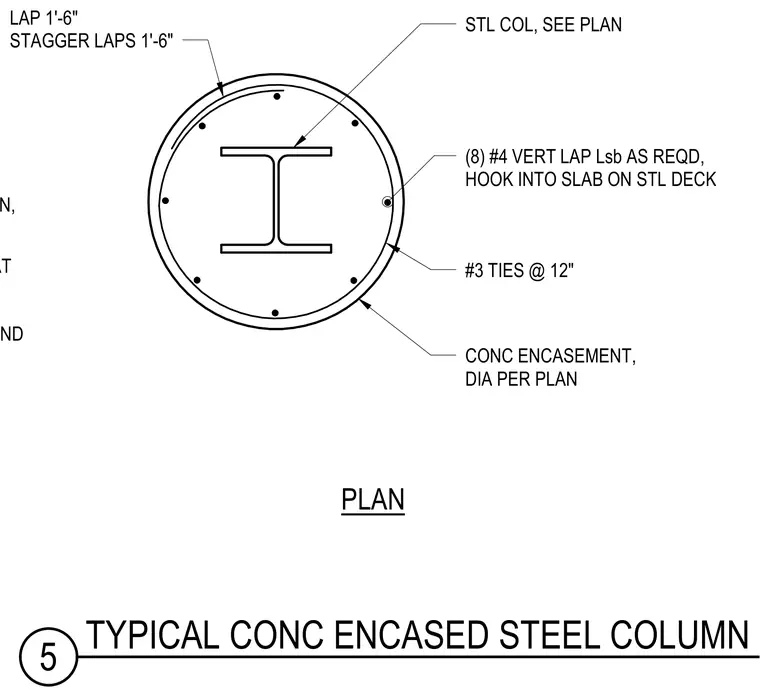

A structural steel column is surrounded by a circular concrete encasement with a diameter sized per plan. The assembly is reinforced vertically with eight number four bars featuring one foot six inch laps and staggered lap lengths, hooking into the slab on steel deck as required. Number three ties are spaced at twelve inches on center around the vertical reinforcement. An octagonal base plate with a radiused or round option at the contractor's discretion is provided at the base.
