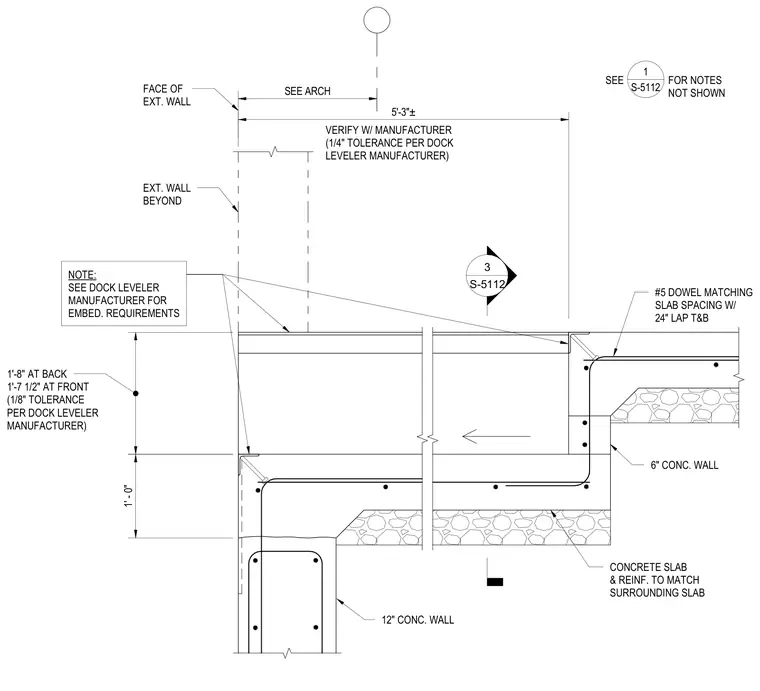

A structural loading dock leveler pit bears on a twelve-inch concrete wall and six-inch concrete wall. The pit features a five-foot-three-inch span that must be verified with the manufacturer, maintaining a quarter-inch tolerance. The depth measures one foot eight inches at the back and one foot seven and a half inches at the front with an eighth-inch tolerance. Number five dowels match the slab spacing with a twenty-four-inch lap top and bottom to tie the concrete slab and reinforcement into the surrounding slab.
5'-3"± VERIFY W/ MANUFACTURER (1/4" TOLERANCE PER DOCK LEVELER MANUFACTURER) SEE ARCH FACE OF EXT. WALL EXT. WALL BEYOND NOTE: SEE DOCK LEVELER MANUFACTURER FOR EMBED. REQUIREMENTS 1'-8" AT BACK 1'-7 1/2" AT FRONT (1/8" TOLERANCE PER DOCK LEVELER MANUFACTURER) 12" CONC. WALL 6" CONC. WALL #5 DOWEL MATCHING SLAB SPACING W/ 24" LAP T&B CONCRETE SLAB & REINF. TO MATCH SURROUNDING SLAB 1' - 0" SEE FOR NOTES NOT SHOWN 1 S-5112 3 S-5112
