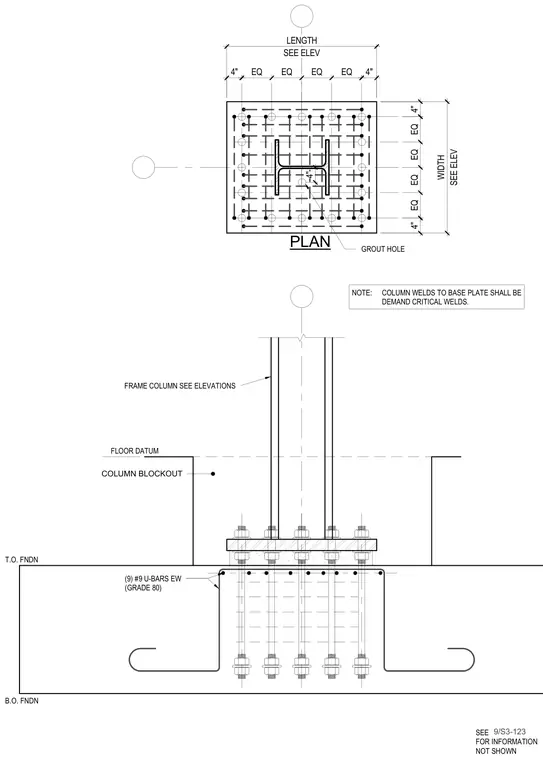

A structural steel frame column connects to a steel base plate anchored into a reinforced concrete foundation. The column welds to the base plate using demand critical welds. Anchor bolts secure the base plate over a leveled grout layer atop the concrete foundation. The foundation contains top and bottom reinforcing U-bars in each direction, detailed with a column blockout and a four-inch grout hole per plan.
PLAN FRAME COLUMN SEE ELEVATIONS SEE ELEV WIDTH SEE ELEV LENGTH FLOOR DATUM COLUMN BLOCKOUT 4" GROUT HOLE NOTE: COLUMN WELDS TO BASE PLATE SHALL BE DEMAND CRITICAL WELDS. B.O. FNDN T.O. FNDN (9) #9 U-BARS EW (GRADE 80) 4" 4" SEE FOR INFORMATION NOT SHOWN 9/S3-123 EQ EQ EQ EQ EQ EQ EQ EQ 4" 4"
