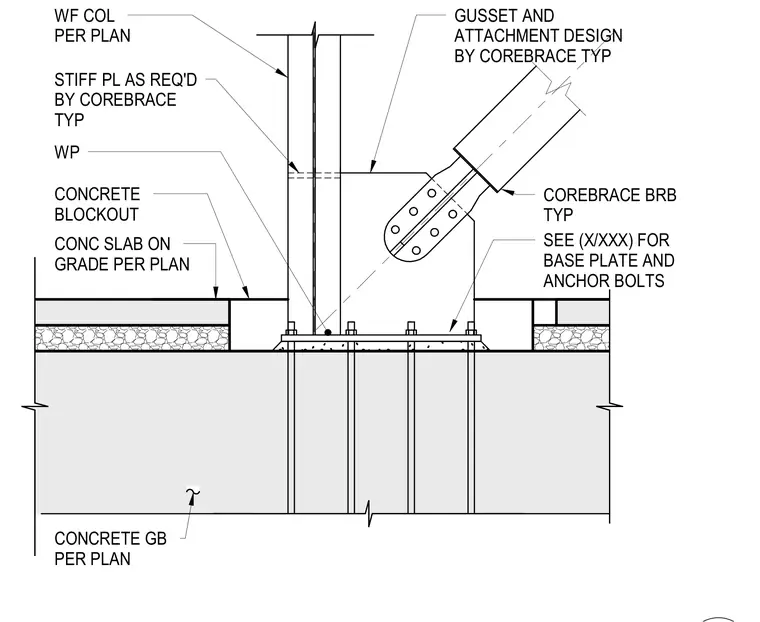

A CoreBrace buckling restrained brace connects to a wide flange steel column and a concrete grade beam or foundation. The brace features a bolted lug connection pinned to a gusset plate, with stiffener plates provided as required by the manufacturer design. The steel column sits on a base plate with anchor bolts embedded into the concrete foundation. A concrete blockout is detailed around the column base within the concrete slab on grade.
COREBRACE BRB TYP SEE (X/XXX) FOR BASE PLATE AND ANCHOR BOLTS STIFF PL AS REQ'D BY COREBRACE TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP CONCRETE BLOCKOUT CONC SLAB ON GRADE PER PLAN WF COL PER PLAN WP CONCRETE GB PER PLAN
