Two number three diagonal reinforcing bars four feet long center on each corner of the structural steel column with a typical two inch concrete clearance. A one inch thick polyfoam joint wraps around the column and is removed at the top half inch after twenty-four-day concrete strength is reached to be filled with sealant per architectural drawings.

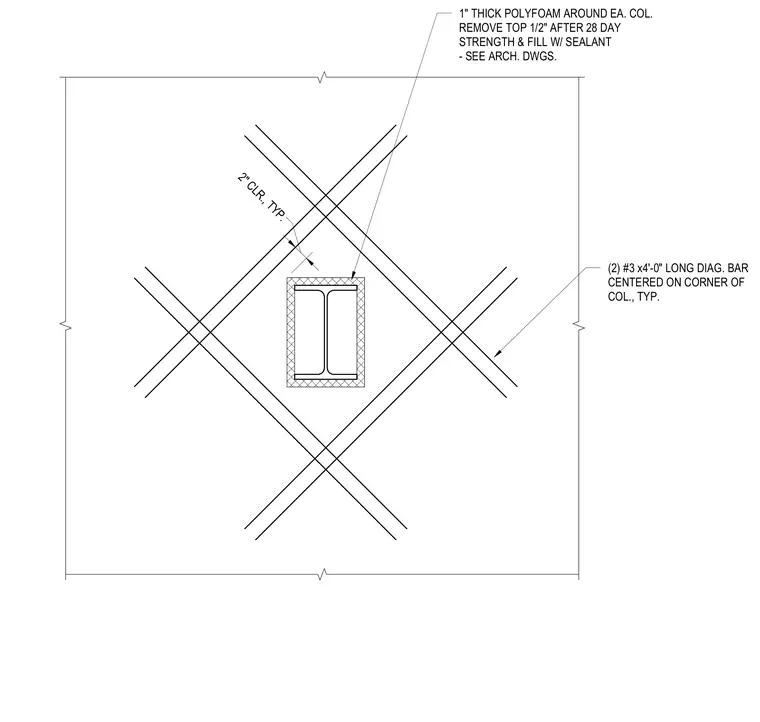

(2) #3 x4'-0" LONG DIAG. BAR CENTERED ON CORNER OF COL., TYP. 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. DWGS. 2" CLR., TYP.
