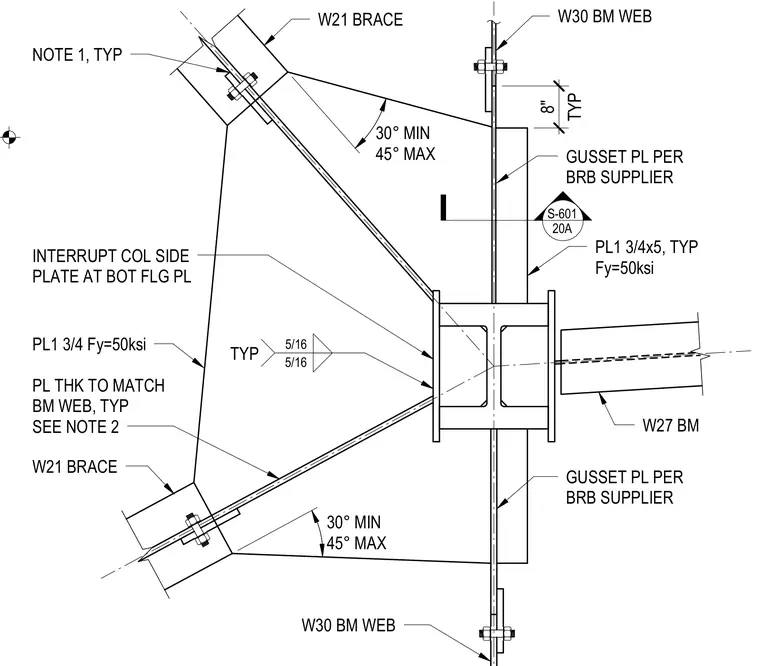

This structural steel connection details a buckling-restrained braced frame assembly framing into a W30 beam web and column. W21 braces connect to gusset plates designed by the buckling-restrained brace supplier, featuring an angle range between thirty and forty-five degrees. The assembly incorporates three-quarter-inch thick plates with a yield strength of fifty ksi, including column side plates interrupted at the bottom flange plate. Five-sixteenth-inch fillet welds secure the plates, and plate thicknesses match the beam web where specified.
S-601 20A 30° MIN 45° MAX W21 BRACE W30 BM WEB NOTE 1, TYP INTERRUPT COL SIDE PLATE AT BOT FLG PL PL1 3/4 Fy=50ksi W21 BRACE W30 BM WEB GUSSET PL PER BRB SUPPLIER W27 BM GUSSET PL PER BRB SUPPLIER TYP 5/16 5/16 TYP 8" 30° MIN 45° MAX PL1 3/4x5, TYP Fy=50ksi PL THK TO MATCH BM WEB, TYP SEE NOTE 2
