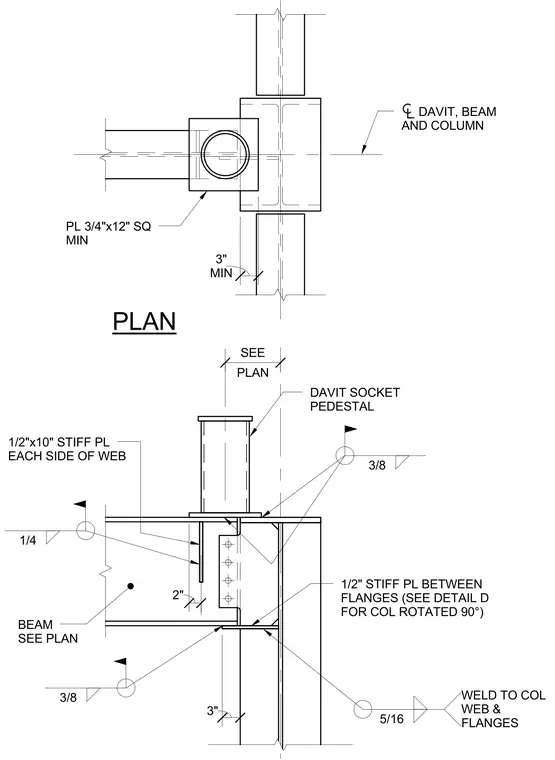

A davit socket pedestal plate measuring three-quarters of an inch by twelve inches square is welded to the top flange of the supporting beam with a three-eighths inch fillet weld. A half-inch by ten-inch stiffener plate is welded to each side of the beam web with a quarter-inch fillet weld. A half-inch stiffener plate is installed between the column flanges, welded to the column web and flanges with five-sixteenths inch fillet welds. The beam frames into the column with a bolted connection while aligning with the centerline of the davit, beam, and column.
PLAN 1/2" STIFF PL BETWEEN FLANGES (SEE DETAIL D FOR COL ROTATED 90°) DAVIT, BEAM AND COLUMN 1/2"x10" STIFF PL EACH SIDE OF WEB BEAM SEE PLAN DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN 2" 1/4 3/8 3" MIN 3" 5/16 WELD TO COL WEB & FLANGES 3/8 PLAN SEE
