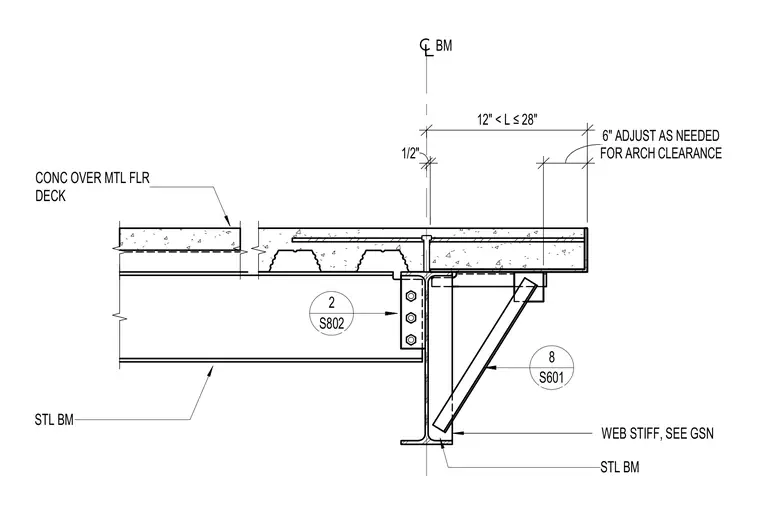

A concrete slab over a metal floor deck bears on a supporting steel beam with an adjustable clearance zone from twelve to twenty-eight inches. The steel beam connects to a perpendicular steel beam via a bolted shear tab referenced on sheet S802. A web stiffener plate is welded to the supporting steel beam with an inclined brace referenced on sheet S601. Adjustments up to six inches are provided for architectural clearance.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM BM WEB STIFF, SEE GSN 2 S802 8 S601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED
