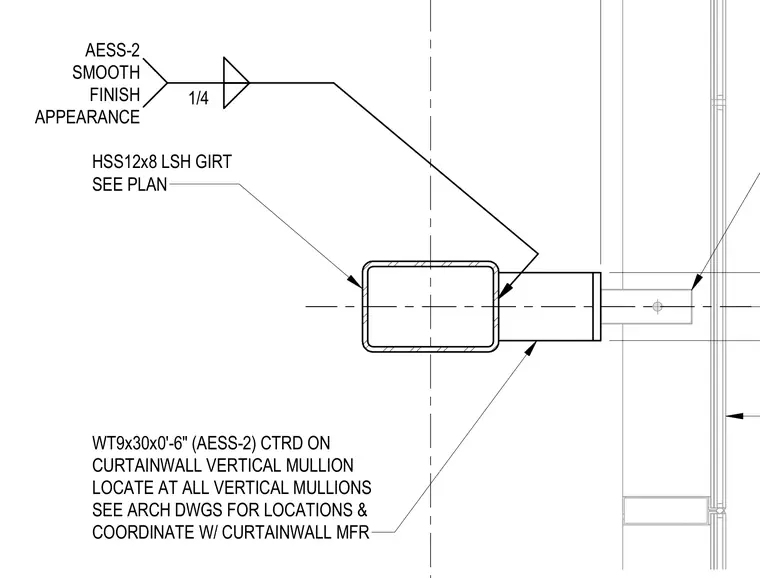

A WT9x30 structural tee spanning zero feet six inches connects a curtainwall vertical mullion to an HSS12x8 hollow structural section girt sized per plan. The tee is centered on the curtainwall vertical mullion and located at all vertical mullions as coordinated with the curtainwall manufacturer. A one-quarter-inch fillet weld secures the WT shape to the HSS girt with an AESS-2 smooth finish appearance.
HSS12x8 LSH GIRT SEE PLAN 1/4 AESS-2 SMOOTH FINISH APPEARANCE WT9x30x0'-6" (AESS-2) CTRD ON CURTAINWALL VERTICAL MULLION LOCATE AT ALL VERTICAL MULLIONS SEE ARCH DWGS FOR LOCATIONS & COORDINATE W/ CURTAINWALL MFR
