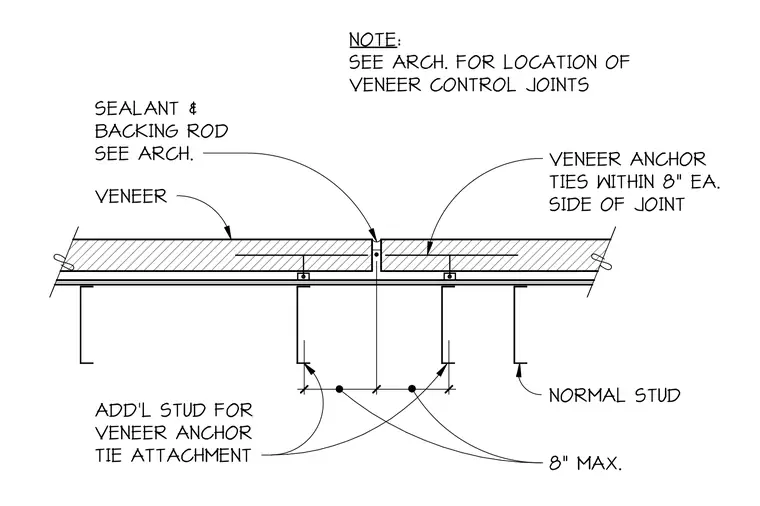

A veneer control joint includes sealant and backing rod between veneer panels, with veneer anchor ties positioned within eight inches of each side of the joint. Additional studs are provided for veneer anchor tie attachment at a maximum spacing of eight inches, supplementing the normal framing studs.
NOTE: SEE ARCH. FOR LOCATION OF VENEER CONTROL JOINTS SEALANT & BACKING ROD SEE ARCH. VENEER VENEER ANCHOR TIES WITHIN 8" EA. SIDE OF JOINT NORMAL STUD ADD'L STUD FOR VENEER ANCHOR TIE ATTACHMENT 8" MAX.
