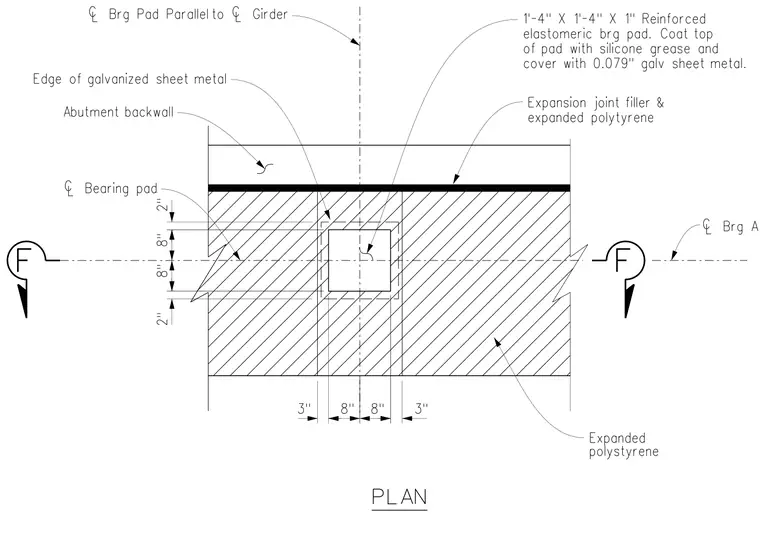

The assembly features a 1'-4" by 1'-4" by 1" reinforced elastomeric bearing pad positioned parallel to the girder centerline at the abutment backwall. The top of the pad is coated with silicone grease and covered with a 0.079-inch galvanized sheet metal cover. Expansion joint filler and expanded polystyrene are incorporated around the bearing area with detailed dimensions including 3-inch, 8-inch, and 2-inch offsets.
polystyrene Expanded 8" 8" 8 " 8 " 2 " 2 " 3" 3" F F Abutment backwall Edge of galvanized sheet metal cover with 0.079" galv sheet metal. of pad with silicone grease and elastomeric brg pad. Coat top 1’-4" X 1’-4" X 1" Reinforced expanded polytyrene Expansion joint filler & PLAN
