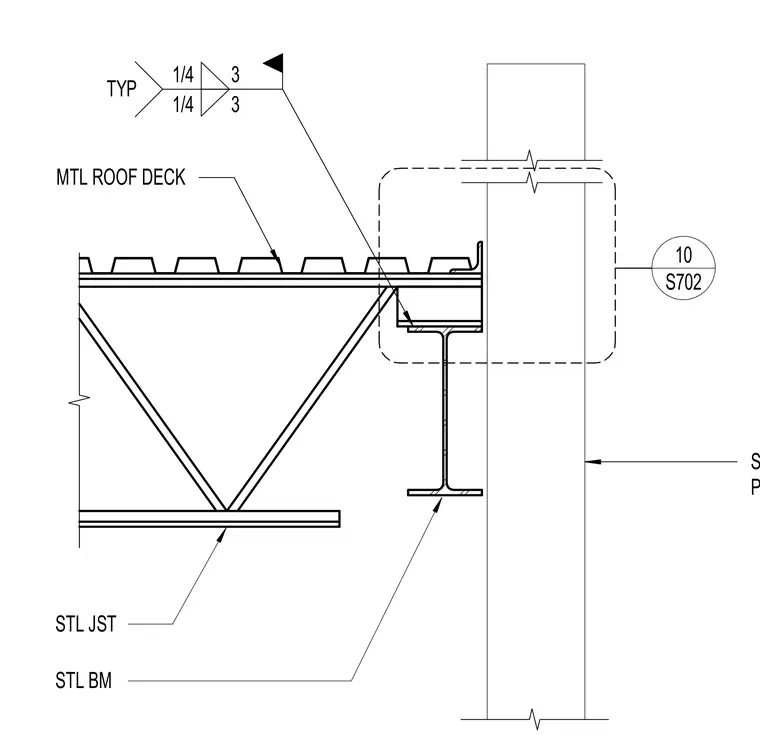

A metal roof deck bears over a steel joist, which in turn rests on a supporting steel beam. A one-quarter-inch fillet weld secures the assembly with a typical three-inch spacing. The steel beam sits adjacent to a storefront panel as sized per the architectural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
