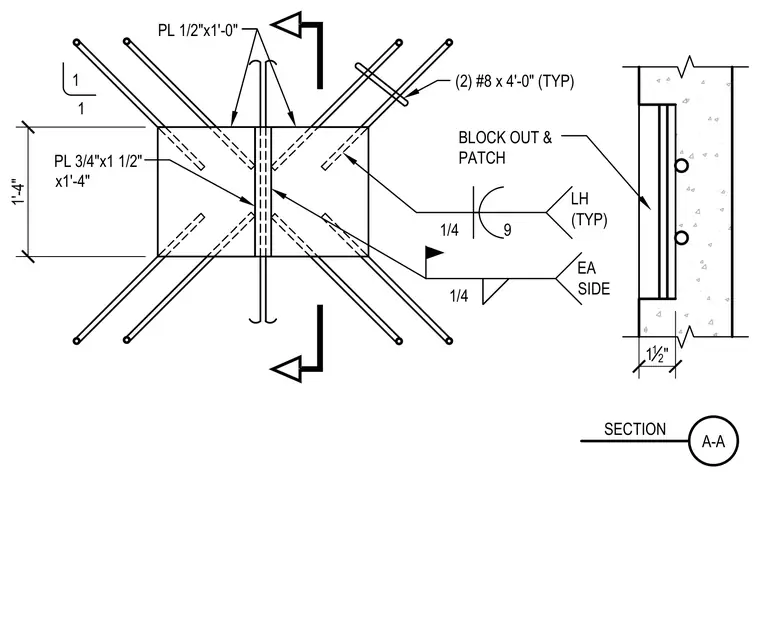

Two precast concrete panels are joined together using embedded steel connection plates and reinforcing bars. A three-quarter-inch by one-and-a-half-inch plate measuring one foot four inches long spans the joint, flanked by half-inch by one-foot plates anchored by two number eight bars four feet long on each side. Welds sized at one-quarter inch connect the steel plates, with block-out and patch details specified for the concrete recess.
1 12 " 1'-4" LH (TYP) EA SIDE 1/4 1/4 9 A-A SECTION 1 1 PL 3/4"x1 1/2" x1'-4" PL 1/2"x1'-0" (2) #8 x 4'-0" (TYP) BLOCK OUT & PATCH
