Clearance requirements and reinforcement criteria apply to round or square slab penetrations near post-tensioned tendon anchorages. A schedule 40 steel pipe insert is required whenever a slab penetration falls within a forty-five degree bearing cone of the tendon anchorage. Penetrations located farther than 1.5 times the diameter or width, and not less than eighteen inches from the anchor, do not require a steel pipe insert. Any penetration with dimensions exceeding twelve inches requires additional trim bars.

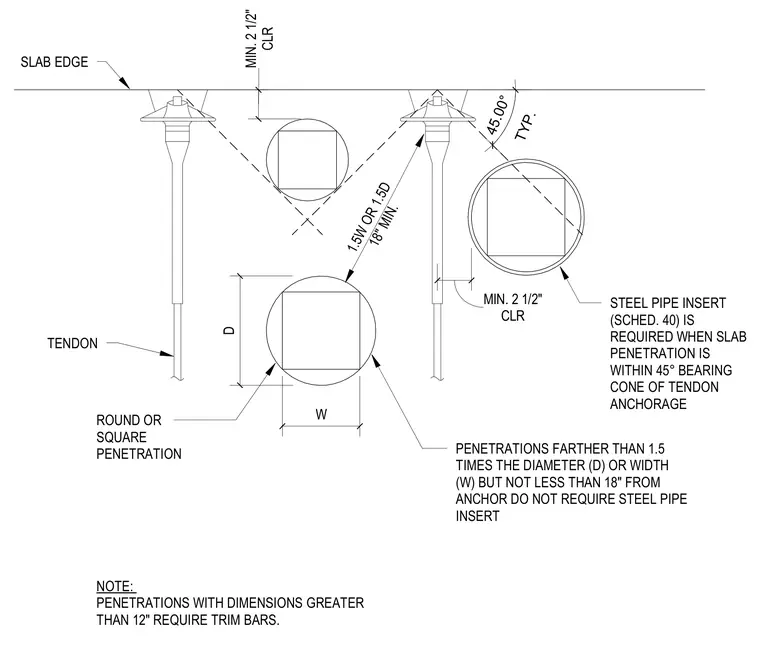

CLR MIN. 2 1/2" SLAB EDGE D W ROUND OR SQUARE PENETRATION 1.5W OR 1.5D 18" MIN. CLR MIN. 2 1/2" TYP. 45.00° PENETRATIONS FARTHER THAN 1.5 TIMES THE DIAMETER (D) OR WIDTH (W) BUT NOT LESS THAN 18" FROM ANCHOR DO NOT REQUIRE STEEL PIPE INSERT STEEL PIPE INSERT (SCHED. 40) IS REQUIRED WHEN SLAB PENETRATION IS WITHIN 45° BEARING CONE OF TENDON ANCHORAGE TENDON NOTE: PENETRATIONS WITH DIMENSIONS GREATER THAN 12" REQUIRE TRIM BARS.
