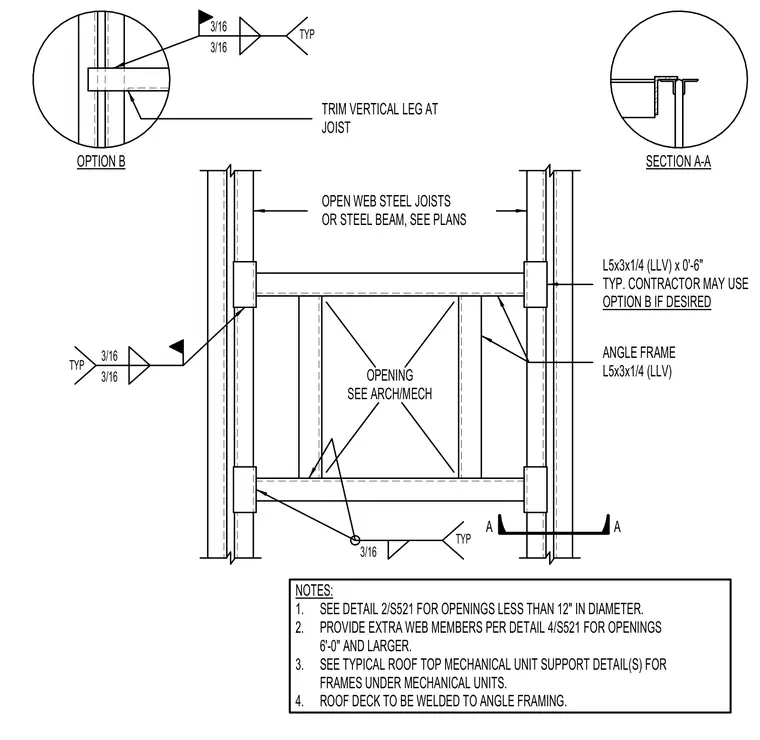

Roof opening framing for open web steel joists or steel beams as indicated on the plans consists of L5x3x1/4 angles, with an optional connection detail designated as Option B for the angle frame. Fillet welds of 3/16-inch size are specified typically at the angle connections. The vertical leg of the angle is trimmed at the joist, and roof decks are welded to the angle framing. Additional notes reference requirements for smaller openings under 12 inches, extra web members for openings 6 feet and larger, and mechanical unit support framing.
OPENING SEE ARCH/MECH OPTION B NOTES: 1. SEE DETAIL 2/S521 FOR OPENINGS LESS THAN 12" IN DIAMETER. 2. PROVIDE EXTRA WEB MEMBERS PER DETAIL 4/S521 FOR OPENINGS 6'-0" AND LARGER. 3. SEE TYPICAL ROOF TOP MECHANICAL UNIT SUPPORT DETAIL(S) FOR FRAMES UNDER MECHANICAL UNITS. 4. ROOF DECK TO BE WELDED TO ANGLE FRAMING. TRIM VERTICAL LEG AT JOIST OPEN WEB STEEL JOISTS OR STEEL BEAM, SEE PLANS L5x3x1/4 (LLV) x 0'-6" TYP. CONTRACTOR MAY USE OPTION B IF DESIRED ANGLE FRAME L5x3x1/4 (LLV) 3/16 TYP TYP 3/16 3/16 3/16 TYP 3/16 A A SECTION A-A
