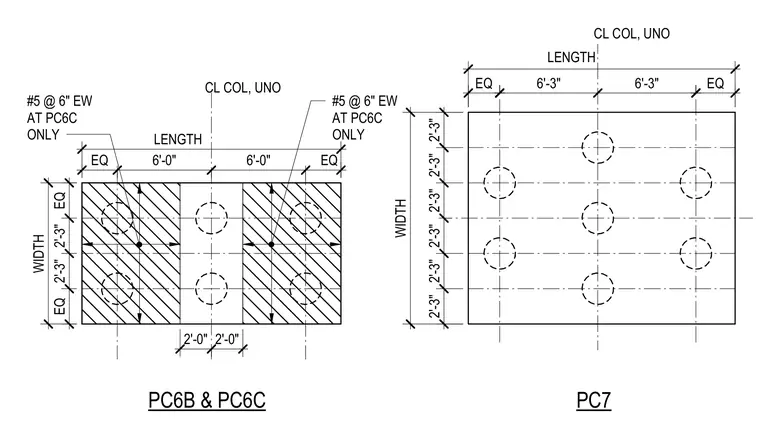

Precast concrete column footings PC6B, PC6C, and PC7 are detailed with centerline column locations and overall width and length dimensions. Footings PC6B and PC6C feature hatched zones with number 5 reinforcing bars at six inches each way exclusively at PC6C. Footing PC7 displays an unhatched rectangular layout with symmetrical column centerline spacing and edge distances.
PC6B & PC6C CL COL, UNO WIDTH EQ 2'-3" 2'-3" EQ EQ 6'-0" 6'-0" EQ LENGTH PC7 CL COL, UNO LENGTH WIDTH 6'-3" 6'-3" EQ EQ 2'-3" 2'-3" 2'-3" 2'-3" 2'-3" 2'-3" #5 @ 6" EW AT PC6C ONLY #5 @ 6" EW AT PC6C ONLY 2'-0" 2'-0"
