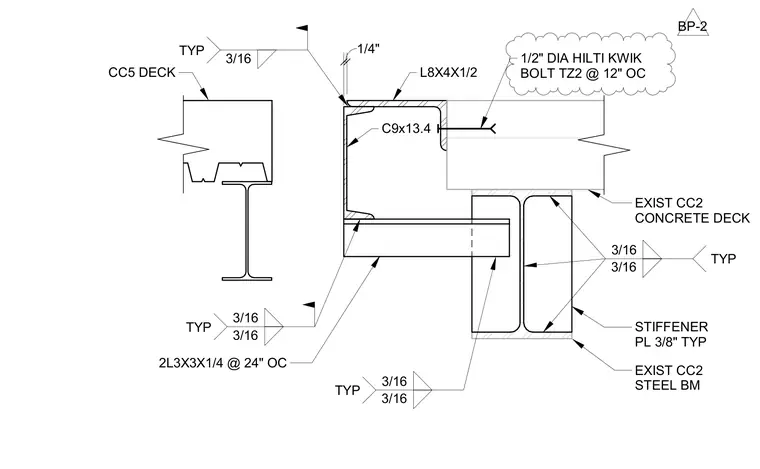

A bridge connection frames a CC5 deck with a C9x13.4 channel edge member into an existing CC2 steel beam and concrete deck. The channel features an L8x4x1/2 angle and connects using half-inch diameter Hilti Kwik Bolt TZ2 anchors spaced at twelve inches on center into the existing concrete deck. An existing CC2 steel beam is reinforced with typical three-eighths inch stiffener plates welded with three-sixteenths inch fillet welds. Double angles designated as 2L3x3x1/4 spaced at twenty-four inches on center provide additional framing support. Fillet welds of three-sixteenths inch are specified throughout the connection assembly.
TYP 3/16 3/16 EXIST CC2 STEEL BM STIFFENER PL 3/8" TYP 2L3X3X1/4 @ 24" OC CC5 DECK C9x13.4 L8X4X1/2 1/2" DIA HILTI KWIK BOLT TZ2 @ 12" OC EXIST CC2 CONCRETE DECK TYP 3/16 3/16 TYP 3/16 3/16 TYP 3/16 1/4" BP-2
