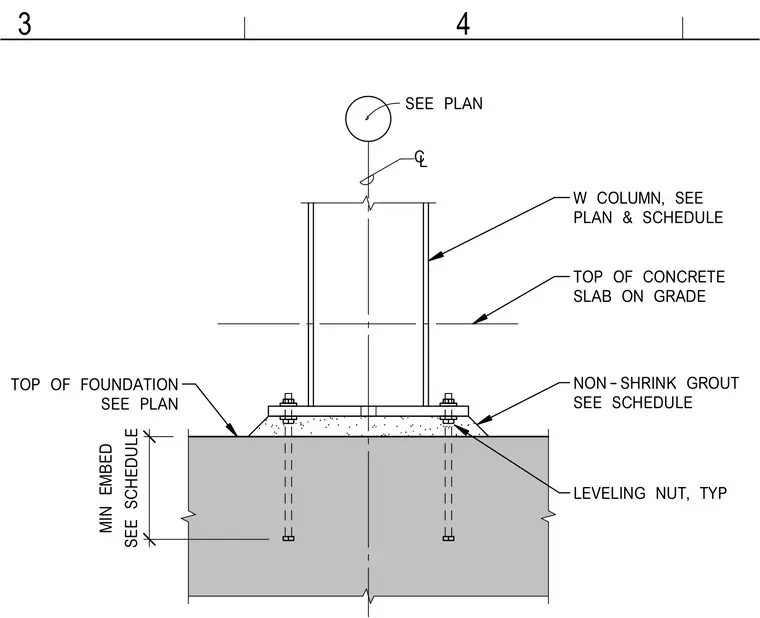

A structural wide-flange column bears on a base plate atop a concrete foundation with a layer of non-shrink grout. Anchor bolts embedded to a specified minimum depth secure the assembly, fitted with typical leveling nuts. The top of the concrete slab on grade establishes the elevation reference relative to the top of the foundation.
SEE PLAN W COLUMN, SEE PLAN & SCHEDULE TOP OF CONCRETE SLAB ON GRADE NON-SHRINK GROUT SEE SCHEDULE LEVELING NUT, TYP TOP OF FOUNDATION SEE PLAN C L SEE SCHEDULE MIN EMBED 4 3
