Concrete slabs and walls feature embedded sleeves or conduit penetrations dimensioned by thickness and diameter. Maximum sleeve diameter 'D' is limited to one-third of the structural thickness 'T' or two inches, whichever is smaller. Center-to-center spacing between sleeves requires a minimum clearance of three times the diameter 'D' or four inches. Areas where clear distance between sleeves is impossible are treated as structural openings per the associated reinforcing detail.

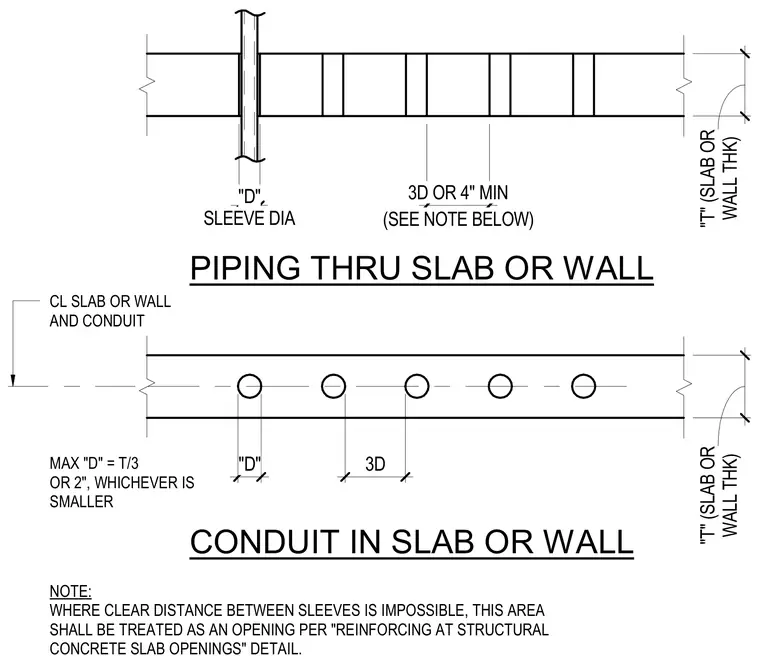

CONDUIT IN SLAB OR WALL NOTE: WHERE CLEAR DISTANCE BETWEEN SLEEVES IS IMPOSSIBLE, THIS AREA SHALL BE TREATED AS AN OPENING PER "REINFORCING AT STRUCTURAL CONCRETE SLAB OPENINGS" DETAIL. MAX "D" = T/3 OR 2", WHICHEVER IS SMALLER SLEEVE DIA "D" (SEE NOTE BELOW) 3D OR 4" MIN WALL THK) "T" (SLAB OR WALL THK) "T" (SLAB OR "D" 3D CL SLAB OR WALL AND CONDUIT PIPING THRU SLAB OR WALL
