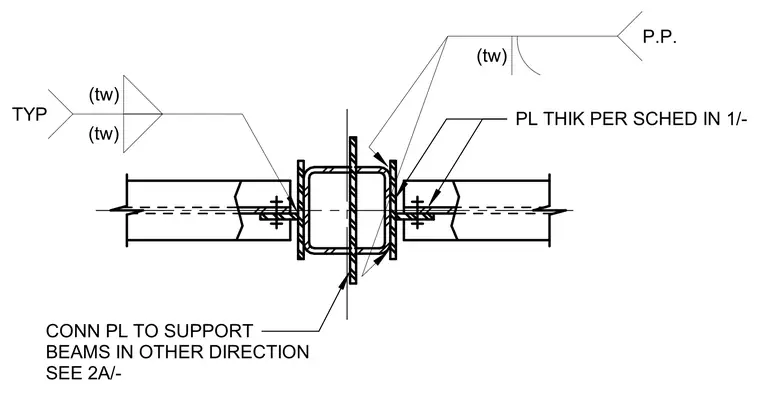

The framing connection features connection plates fastened to support beams in the other direction as referenced in detail 2A. A plate thickness per schedule is indicated for the connection elements. Weld symbols specify typical weld sizes denoted by (tw) for the structural joints. P.P. plate elements are integrated into the assembly with specific welding callouts.
CONN PL TO SUPPORT BEAMS IN OTHER DIRECTION SEE 2A/- (tw) P.P. PL THIK PER SCHED IN 1/- (tw) (tw) TYP
