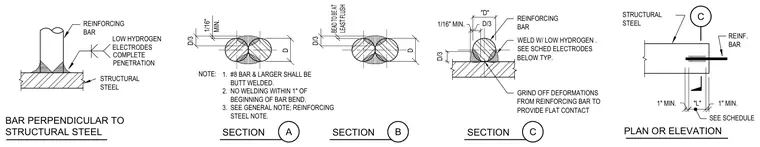

A reinforcing bar is welded perpendicular to a structural steel member using low hydrogen electrodes with complete penetration, requiring deformations to be ground off the reinforcing bar to provide flat contact. Number 8 bars and larger shall be butt welded, and no welding is permitted within one inch of the beginning of the bar bend. Fillet and groove welds are detailed with specific root openings and dimensions based on bar diameter D, including one-sixteenth inch minimum clearances and weld proportions of D over three.
STRUCTURAL STEEL BAR PERPENDICULAR TO STRUCTURAL STEEL ELECTRODES LOW HYDROGEN BAR REINFORCING D/3 "D" 1/16" MIN. D/3 SECTION PLAN OR ELEVATION BAR REINF. STEEL STRUCTURAL "L" 1" MIN. 1" MIN. COMPLETE PENETRATION SEE SCHEDULE D D D/3 1/16" MIN. D/3 SECTION SECTION NOTE: 1. #8 BAR & LARGER SHALL BE BUTT WELDED. 2. NO WELDING WITHIN 1" OF BEGINNING OF BAR BEND. 3. SEE GENERAL NOTE; REINFORCING STEEL NOTE. C C B A REINFORCING BAR WELD W/ LOW HYDROGEN . SEE SCHED ELECTRODES BELOW TYP. GRIND OFF DEFORMATIONS FROM REINFORCING BAR TO PROVIDE FLAT CONTACT
