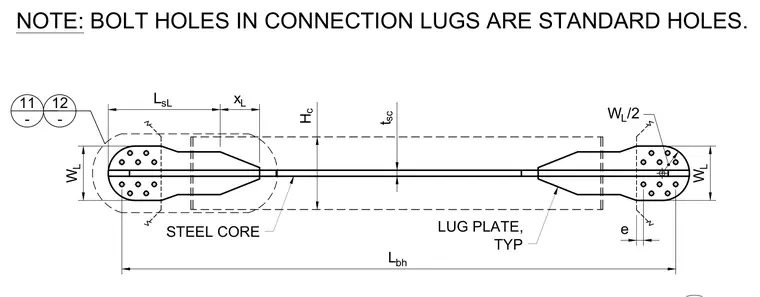

A structural steel core connection features welded lug plates at each end with standard bolt holes. The assembly incorporates dimensioned parameters for lug plate length, thickness, spacing, and edge distances relative to the main steel core member.
L bh L sL x L H c t sc e W L 12 - STEEL CORE LUG PLATE, TYP W L /2 W L 11 - NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
