HSS Truss Frame and Steel Beam Connection at Concrete Lintel

Materials

Concrete Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Arches Trusses Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

HSS Connection Embed Plate

About this detail

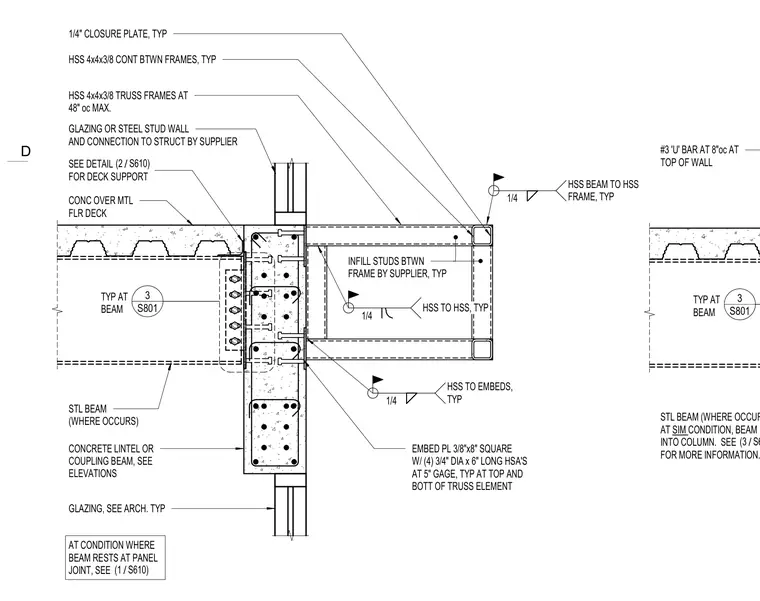

An HSS 4x4x3/8 truss frame spans continuously at forty-eight inches on center maximum, with continuous HSS 4x4x3/8 members running between frames. A three-eighths-inch by eight-inch square embed plate with four three-quarter-inch diameter by six-inch long heavy-duty sleeve anchors at five-inch gauge secures the top and bottom of the truss element to the concrete lintel or coupling beam. One-quarter-inch fillet welds secure the hollow structural sections to the embed plates and to each other. Infill studs between the frame and a one-quarter-inch closure plate are provided by the supplier. A steel beam bears on concrete over a metal floor deck, with number three U-bars at eight inches on center placed at the top of the wall.
