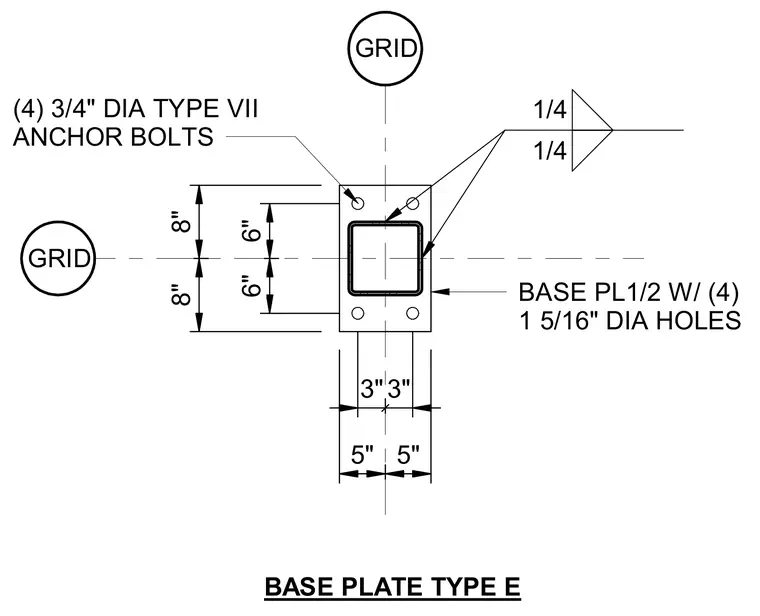

A rectangular steel column base plate measuring one-half inch thick features four one and five-sixteenths inch diameter holes for anchorage. The assembly is secured by four three-quarter inch diameter Type VII anchor bolts arranged symmetrically around the structural column. A one-quarter inch fillet weld attaches the column profile to the base plate.
GRID 5" 5" 8" 8" (4) 3/4" DIA TYPE VII ANCHOR BOLTS BASE PL1/2 W/ (4) 1 5/16" DIA HOLES 1/4 1/4 GRID BASE PLATE TYPE E 6" 6" 3" 3"
