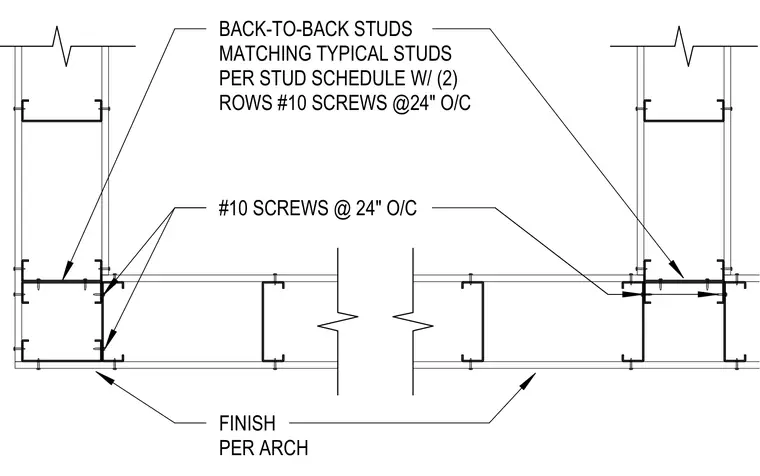

Back-to-back studs match typical studs per the stud schedule and fasten with two rows of number ten screws at twenty-four inches on center. Number ten screws fasten at twenty-four inches on center at the intersecting framing. Finishes apply per the architectural drawings.
BACK-TO-BACK STUDS MATCHING TYPICAL STUDS PER STUD SCHEDULE W/ (2) ROWS #10 SCREWS @24" O/C #10 SCREWS @ 24" O/C FINISH PER ARCH
