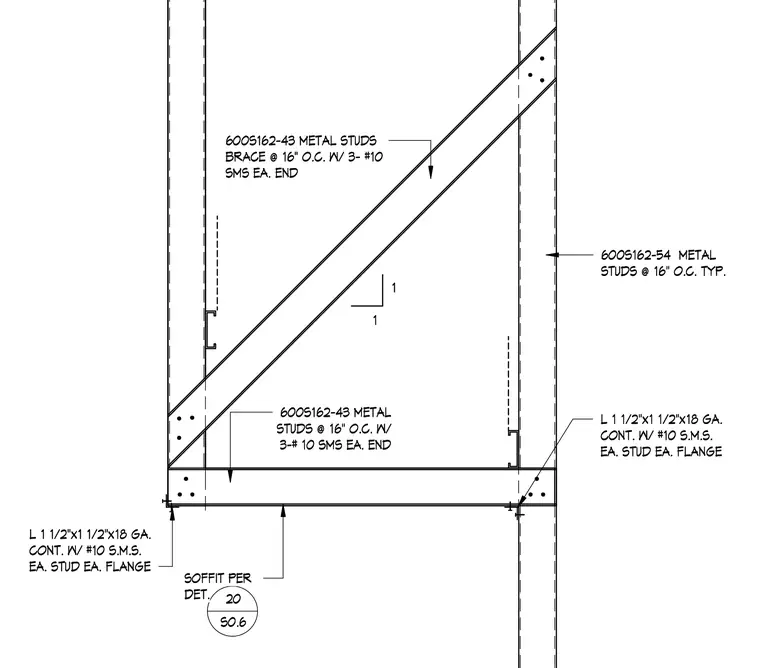

Vertical 600S162-54 metal studs are spaced at sixteen inches on center typically, with diagonal 600S162-43 metal stud braces spaced at sixteen inches on center. Each end of the diagonal brace is secured with three number ten sheet metal screws. Continuous 1-1/2 inch by 1-1/2 inch by 18 gauge angles are fastened to each stud flange using number ten sheet metal screws. The assembly interfaces with a soffit constructed per detail 20 on sheet S0.6.
1 1 600S162-43 METAL STUDS @ 16" O.C. W/ 3-# 10 SMS EA. END 600S162-54 METAL STUDS @ 16" O.C. TYP. 20 S0.6 SOFFIT PER DET. 600S162-43 METAL STUDS BRACE @ 16" O.C. W/ 3- #10 SMS EA. END L 1 1/2"x1 1/2"x18 GA. CONT. W/ #10 S.M.S. EA. STUD EA. FLANGE L 1 1/2"x1 1/2"x18 GA. CONT. W/ #10 S.M.S. EA. STUD EA. FLANGE
