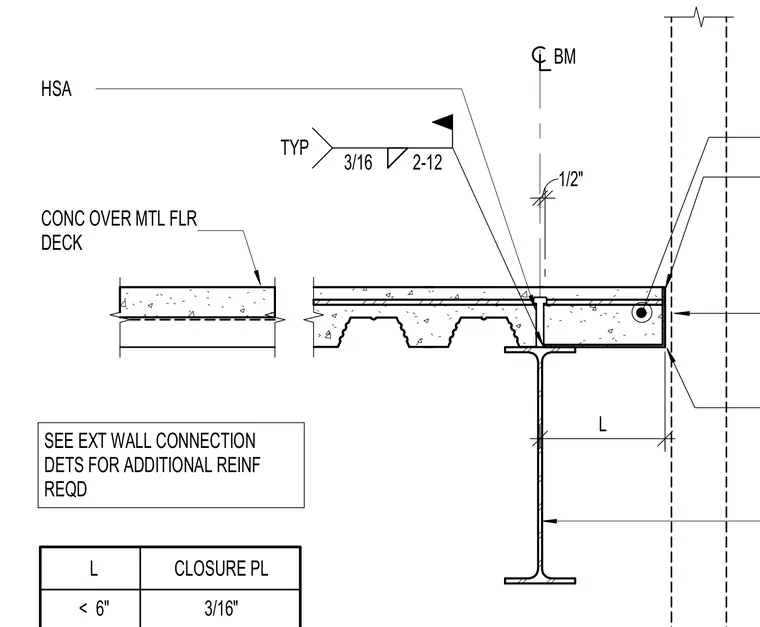

A concrete over metal floor deck bears on a structural steel beam with an edge closure plate welded via a three-sixteenths inch fillet weld. Additional reinforcement is specified per exterior wall connection details. A dimensioned gap L of less than six inches dictates a three-sixteenths inch thick closure plate as scheduled. The headed stud anchor and beam centerline establish alignment.
SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L < 6" CLOSURE PL 3/16" CONC OVER MTL FLR DECK L 1/2" HSA BM 3/16 2-12 TYP
