Typical HSS Girt to Column By-Pass Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection

About this detail

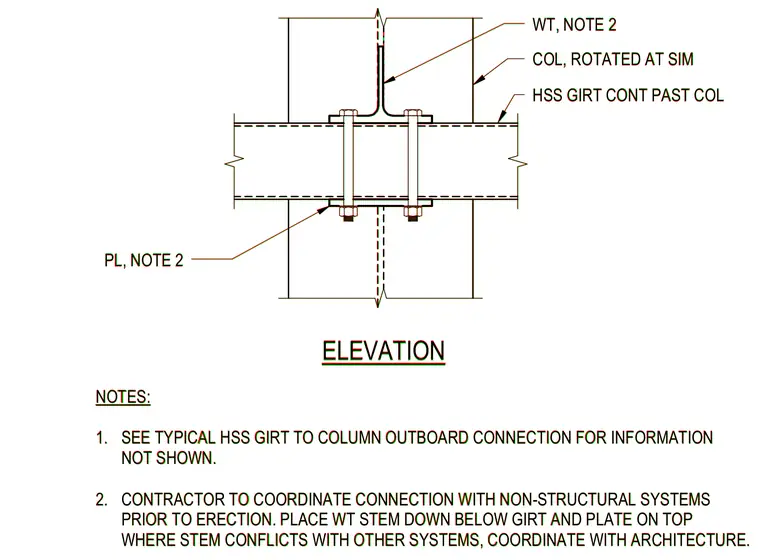

A continuous hollow structural section girt bypasses the structural column, connected via a structural tee section and a bottom plate secured by through-bolts. The structural tee is positioned with its stem extending upward against the column flange, while the bottom plate supports the underside of the girt. Notes require the contractor to coordinate the connection with non-structural systems prior to erection and allow for placing the structural tee stem downward below the girt with the plate on top in the event of system conflicts. An adjacent note directs the user to reference the typical hollow structural section girt to column outboard connection for additional information not shown.
