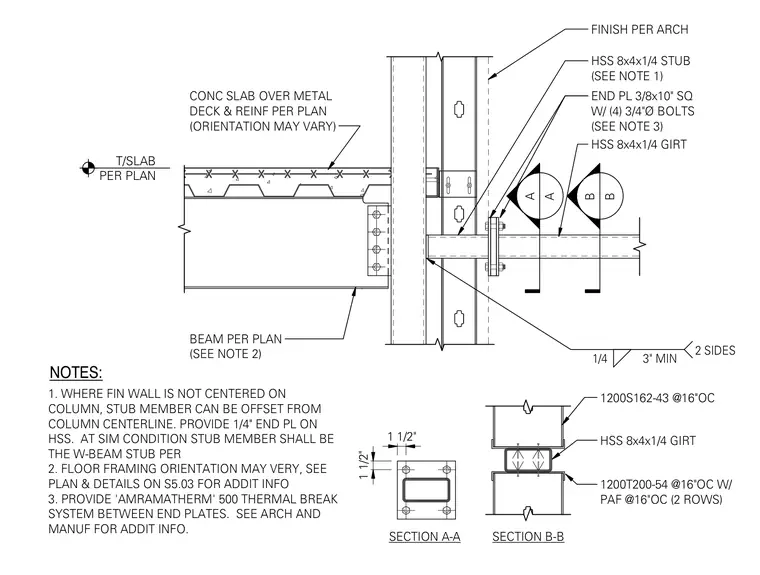

An HSS 8x4x1/4 stub member extends from the structural steel column to support the exterior eyebrow girt. A 3/8-inch square end plate is welded to the stub with a quarter-inch fillet weld on two sides for a minimum of 3 inches, and fastens to the girt using four three-quarter-inch diameter bolts. An 'Amramatherm' 500 thermal break system is installed between the mating end plates. The assembly interfaces with a concrete slab over metal deck and cold-formed steel framing consisting of 1200S162-43 studs and 1200T200-54 tracks spaced at 16 inches on center.
T/SLAB PER PLAN A A B B FINISH PER ARCH END PL 3/8x10" SQ W/ (4) 3/4"Ø BOLTS (SEE NOTE 3) HSS 8x4x1/4 GIRT 1/4 3" MIN 2 SIDES 1 1/2" 1 1/2" SECTION A-A CONC SLAB OVER METAL DECK & REINF PER PLAN (ORIENTATION MAY VARY) BEAM PER PLAN (SEE NOTE 2) SECTION B-B 1200S162-43 @16"OC HSS 8x4x1/4 GIRT 1200T200-54 @16"OC W/ PAF @16"OC (2 ROWS) 1. WHERE FIN WALL IS NOT CENTERED ON COLUMN, STUB MEMBER CAN BE OFFSET FROM COLUMN CENTERLINE. PROVIDE 1/4" END PL ON HSS. AT SIM CONDITION STUB MEMBER SHALL BE THE W-BEAM STUB PER 2. FLOOR FRAMING ORIENTATION MAY VERY, SEE PLAN & DETAILS ON S5.03 FOR ADDIT INFO 3. PROVIDE 'AMRAMATHERM' 500 THERMAL BREAK SYSTEM BETWEEN END PLATES. SEE ARCH AND MANUF FOR ADDIT INFO. HSS 8x4x1/4 STUB (SEE NOTE 1) NOTES:
