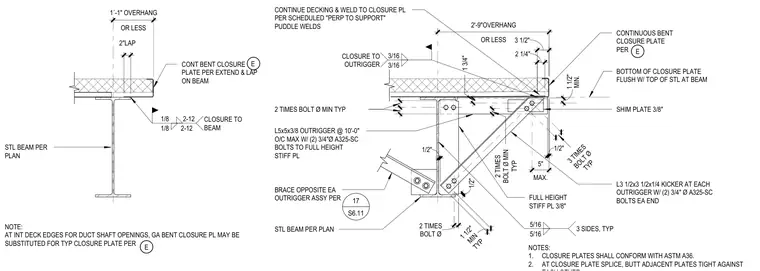

A steel deck perimeter edge condition features a continuous bent closure plate and outrigger assembly. The L5x5x3/8 outrigger is spaced at 10 feet on center maximum and connects to a full-height 3/8-inch stiffener plate using two 3/4-inch diameter A325-SC bolts. An L3 1/2x3 1/2x1/4 kicker angle ties back to the assembly with two 3/4-inch diameter A325-SC bolts at each end. The metal decking continues over the support and is secured to the closure plate with scheduled puddle welds. Closure plates conform to ASTM A36 and are installed with shim plates as required.
CONTINUE DECKING & WELD TO CLOSURE PL PER SCHEDULED "PERP TO SUPPORT" PUDDLE WELDS L5x5x3/8 OUTRIGGER @ 10'-0" O/C MAX W/ (2) 3/4"Ø A325-SC BOLTS TO FULL HEIGHT STIFF PL BRACE OPPOSITE EA OUTRIGGER ASSY PER STL BEAM PER PLAN FULL HEIGHT STIFF PL 3/8" 2 TIMES BOLT Ø MIN TYP 1 3/4" CONTINUOUS BENT CLOSURE PLATE PER BOTTOM OF CLOSURE PLATE FLUSH W/ TOP OF STL AT BEAM L3 1/2x3 1/2x1/4 KICKER AT EACH OUTRIGGER W/ (2) 3/4" Ø A325-SC BOLTS EA END 3 TIMES BOLT Ø TYP 1/2" MIN. 1 1/2" 3 1/2" 2 1/4" 1/2" MAX. 5" 2"LAP NOTE: AT INT DECK EDGES FOR DUCT SHAFT OPENINGS, GA BENT CLOSURE PL MAY BE SUBSTITUTED FOR TYP CLOSURE PLATE PER CONT BENT CLOSURE PLATE PER EXTEND & LAP ON BEAM STL BEAM PER PLAN OR LESS 2'-9"OVERHANG 1/2" 3/16 3/16 CLOSURE TO OUTRIGGER OR LESS 1´-1" OVERHANG 1/8 2-12 CLOSURE TO BEAM 1/8 2-12 2 TIMES BOLT Ø MIN TYP BOLT Ø 2 TIMES 5/16 5/16 3 SIDES, TYP 17 S6.11 SHIM PLATE 3/8" 1. 2. NOTES: CLOSURE PLATES SHALL CONFORM WITH ASTM A36. AT CLOSURE PLATE SPLICE, BUTT ADJACENT PLATES TIGHT AGAINST E E E TYP 1 1/2" MIN
