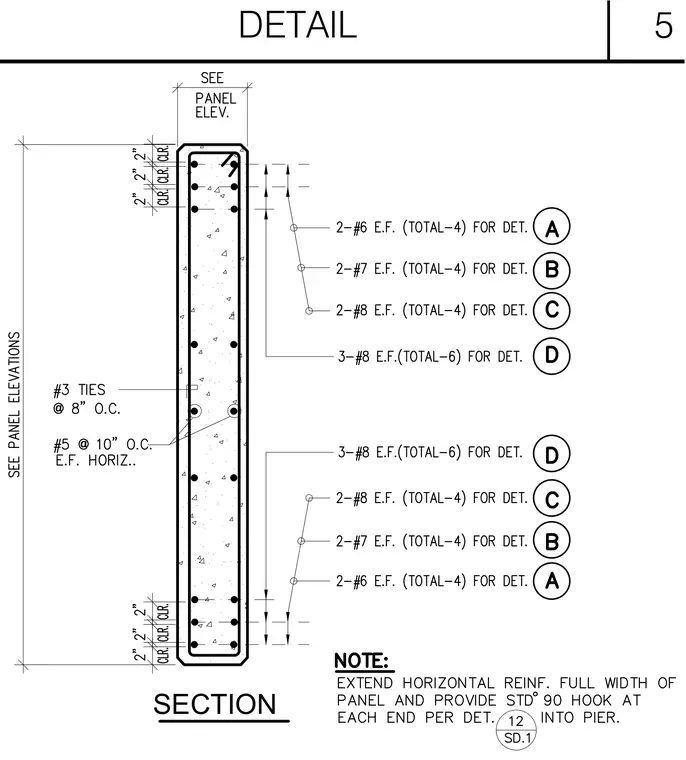

A precast concrete wall panel cross section displays vertical reinforcing bars ranging from number six to number eight bars each face, tied with number three ties at eight inches on center. Horizontal reinforcing consists of number five bars at ten inches on center each face. Clearances at the top and bottom are maintained at two inches. Horizontal reinforcement extends the full width of the panel and includes standard ninety-degree hooks at each end per detail twelve on sheet SD.1.
