Structural · S-6EP2Q

Eyebrow Roof Framing and Steel Beam Connection Detail

Materials

Elements

About this detail

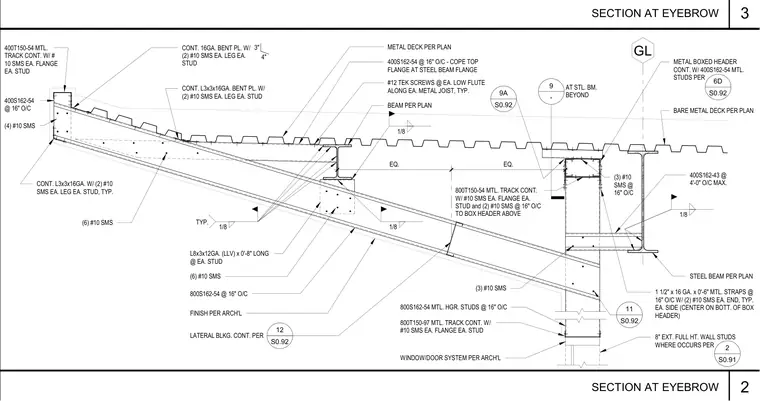

An eyebrow roof structure frames into a structural steel beam and exterior wall assembly. Cold-formed metal framing studs measuring 400S162-54 at sixteen inches on center bear against a continuous 400T150-54 metal track at the perimeter and attach with number ten self-tapping screws. The sloped metal deck rests on metal joists and is secured with number twelve tek screws at each low flute. A steel beam supports the framing with a continuous 16-gauge bent plate and L3x3x16-gauge continuous bent plates fastened with number ten self-tapping screws at each leg and stud. Additional framing includes 800S162-54 studs, lateral blocking, a metal boxed header, and 1.5-inch by 16-gauge by 6-inch metal straps spaced at sixteen inches on center with number ten self-tapping screws at each end. Finish materials and window or door systems are installed per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
