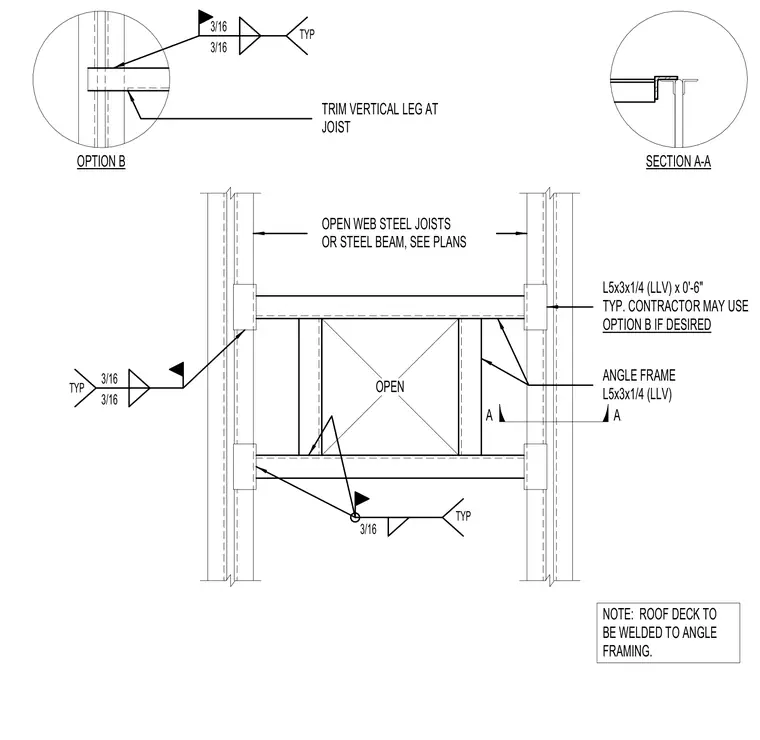

An angle frame constructed from L5x3x1/4 structural steel angles supports a skylight opening within a roof framing layout of open web steel joists or steel beams sized per plans. Typical three-sixteenths inch fillet welds secure the angle framing components together, with option B trim applied to the vertical leg at the joist as an alternate construction method. The roof deck welds directly to the surrounding angle framing as specified in the drawing notes.
OPEN OPTION B TRIM VERTICAL LEG AT JOIST OPEN WEB STEEL JOISTS OR STEEL BEAM, SEE PLANS L5x3x1/4 (LLV) x 0'-6" TYP. CONTRACTOR MAY USE OPTION B IF DESIRED ANGLE FRAME L5x3x1/4 (LLV) 3/16 TYP TYP 3/16 3/16 3/16 TYP 3/16 A A SECTION A-A NOTE: ROOF DECK TO BE WELDED TO ANGLE FRAMING.
