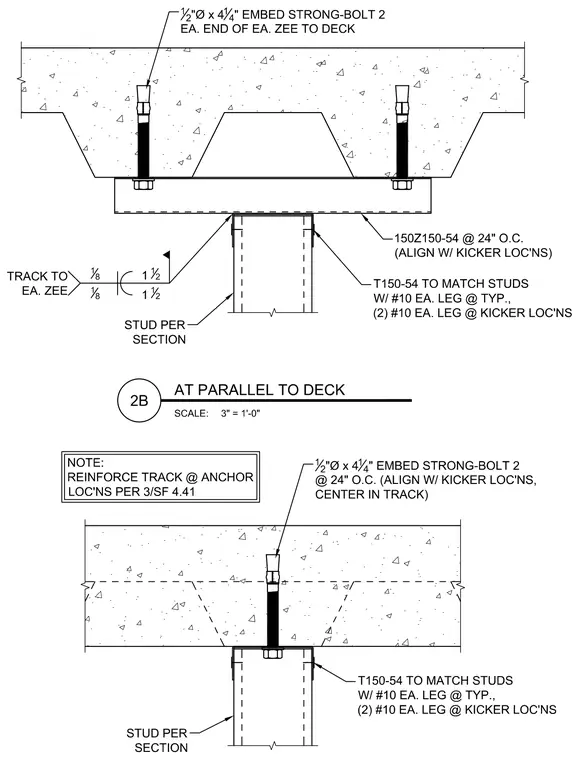

Cold-formed steel stud framing connects to a concrete deck using a T150-54 track and 150Z150-54 zees spaced at 24 inches on center, aligned with kicker locations. The assembly is secured to the concrete slab above using 1/2-inch diameter by 4-1/4-inch embedment Strong-Bolt 2 anchors placed at each end of each zee and spaced at 24 inches on center. A stud per section frames downward into the track, fastened with number 10 screws at each leg typically and two number 10 screws at each leg near kicker locations. A note specifies to reinforce the track at anchor locations per detail 3/SF 4.41.
