Installation sequence and weld requirements for a buckling-restrained brace collar assembly shipped loose with the brace. After the brace is in place and fully welded to the gusset plates, the re-bar stop is removed and the collar assembly is slid against the edge of the gusset plate. Field welds of five-sixteenths inch size are specified for the collar assembly to both the core plate and the gusset plate. Optional locations allow the core plate weld at the top or bottom side, and the gusset plate weld at the near or far side.

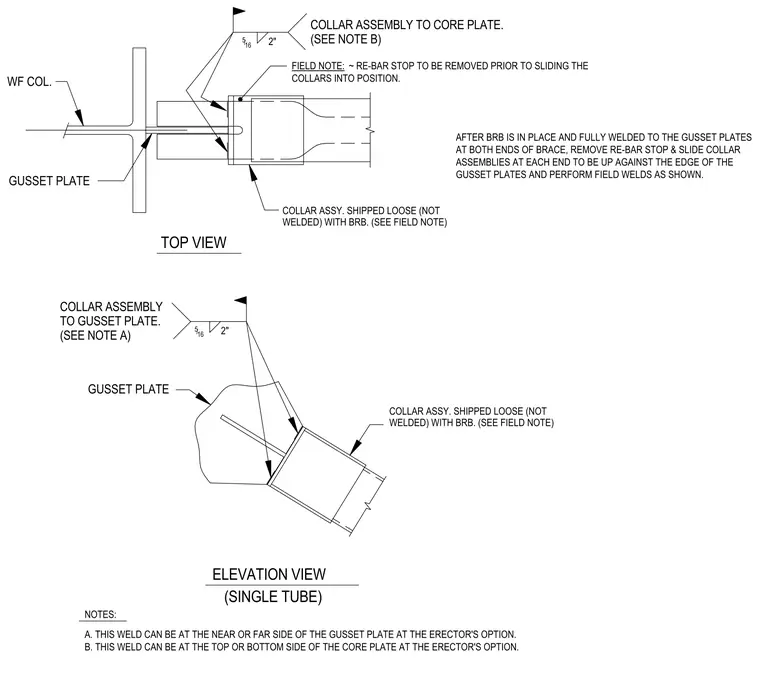

B. THIS WELD CAN BE AT THE TOP OR BOTTOM SIDE OF THE CORE PLATE AT THE ERECTOR'S OPTION. A. THIS WELD CAN BE AT THE NEAR OR FAR SIDE OF THE GUSSET PLATE AT THE ERECTOR'S OPTION. NOTES: COLLAR ASSY. SHIPPED LOOSE (NOT WELDED) WITH BRB. (SEE FIELD NOTE) COLLAR ASSY. SHIPPED LOOSE (NOT WELDED) WITH BRB. (SEE FIELD NOTE) AFTER BRB IS IN PLACE AND FULLY WELDED TO THE GUSSET PLATES AT BOTH ENDS OF BRACE, REMOVE RE-BAR STOP & SLIDE COLLAR ASSEMBLIES AT EACH END TO BE UP AGAINST THE EDGE OF THE GUSSET PLATES AND PERFORM FIELD WELDS AS SHOWN. COLLAR ASSEMBLY TO CORE PLATE. (SEE NOTE B) 5/16 2" 5/16 2" COLLAR ASSEMBLY TO GUSSET PLATE. (SEE NOTE A) GUSSET PLATE WF COL. GUSSET PLATE TOP VIEW ELEVATION VIEW (SINGLE TUBE) FIELD NOTE: ~ RE-BAR STOP TO BE REMOVED PRIOR TO SLIDING THE COLLARS INTO POSITION.
