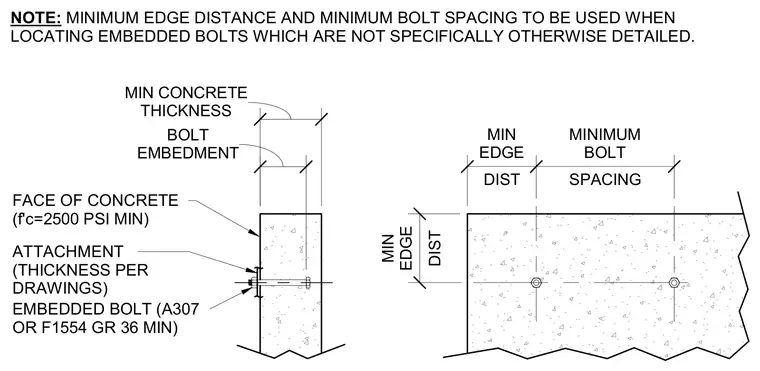

This structural detail outlines the minimum edge distances, bolt spacings, embedment depths, and concrete thickness requirements for embedded anchor bolts. The concrete face requires a minimum compressive strength of 2,500 PSI. Embedded bolts utilize A307 or F1554 Grade 36 minimum steel specifications, anchoring structural attachments of variable thickness as detailed in the drawings.
NOTE: MINIMUM EDGE DISTANCE AND MINIMUM BOLT SPACING TO BE USED WHEN LOCATING EMBEDDED BOLTS WHICH ARE NOT SPECIFICALLY OTHERWISE DETAILED. DIST MIN EDGE SPACING MINIMUM BOLT DIST MIN EDGE BOLT EMBEDMENT MIN CONCRETE THICKNESS FACE OF CONCRETE (f'c=2500 PSI MIN) ATTACHMENT (THICKNESS PER DRAWINGS) EMBEDDED BOLT (A307 OR F1554 GR 36 MIN)
