A wood nailer matches the steel beam flange width and secures to the structural steel using seven-eighths inch diameter welded threaded rods spaced at sixteen inches on center staggered with a maximum three-quarter inch countersink. One rod is placed a maximum of nine inches from each end of the nailer and from each splice. Sub-purlins frame into the assembly per the structural plan. The steel beam web accommodates five-inch diameter maximum holes for pipes spaced at ten feet on center minimum as required by approved sprinkler drawings.

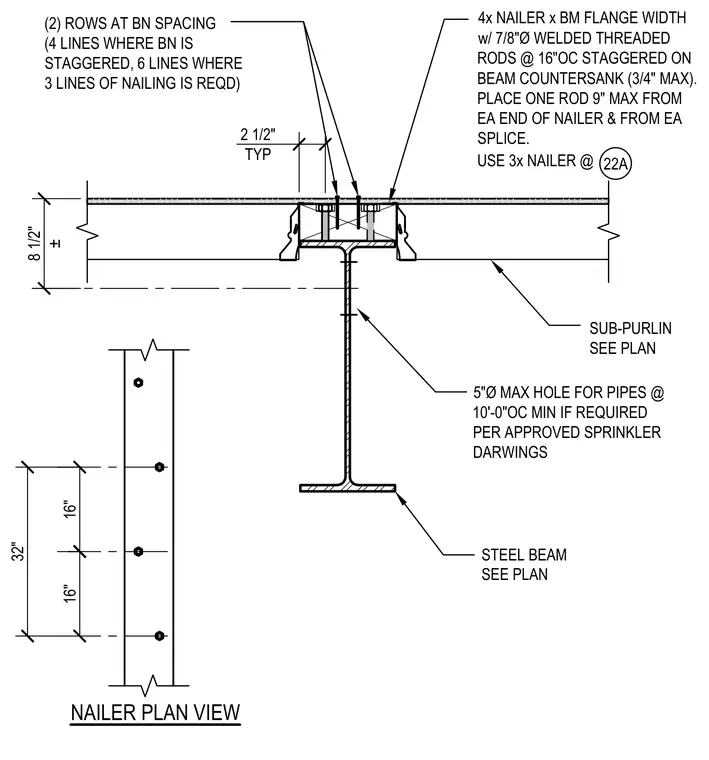

4x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. 5"Ø MAX HOLE FOR PIPES @ 10'-0"OC MIN IF REQUIRED PER APPROVED SPRINKLER DARWINGS SUB-PURLIN SEE PLAN 8 1/2" ± STEEL BEAM SEE PLAN 16" 16" 32" NAILER PLAN VIEW USE 3x NAILER @ 22A (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 2 1/2" TYP
