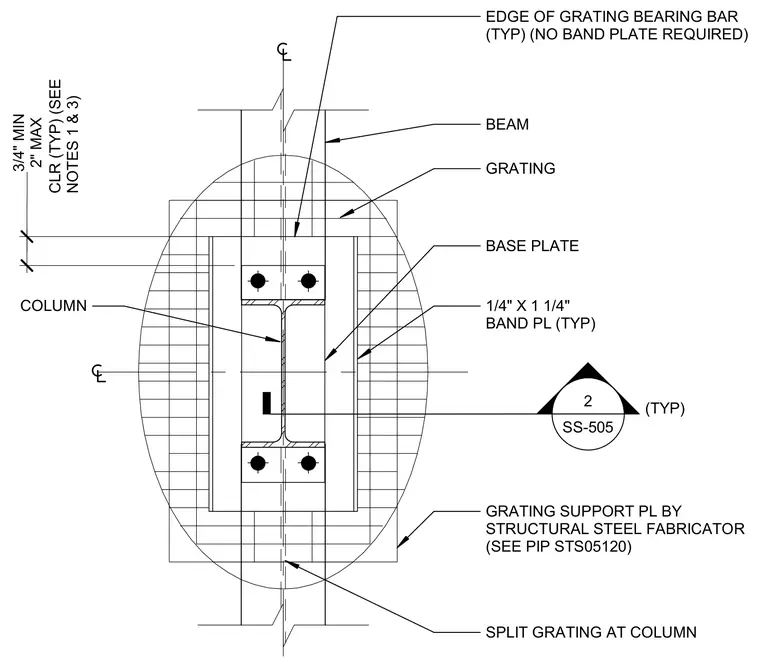

Metal grating is split at the column edge with a one-quarter-inch by one-and-one-quarter-inch typical band plate. A grating support plate provided by the structural steel fabricator is installed beneath the assembly. A clearance of three-quarters-inch minimum to two inches maximum is maintained at the column per notes. The grating bearing bar edge requires no band plate at the split location.
GRATING BEAM BASE PLATE 1/4" X 1 1/4" BAND PL (TYP) GRATING SUPPORT PL BY STRUCTURAL STEEL FABRICATOR (SEE PIP STS05120) SPLIT GRATING AT COLUMN EDGE OF GRATING BEARING BAR (TYP) (NO BAND PLATE REQUIRED) COLUMN 2" MAX 3/4" MIN CLR (TYP) (SEE NOTES 1 & 3) 2 SS-505 (TYP)
