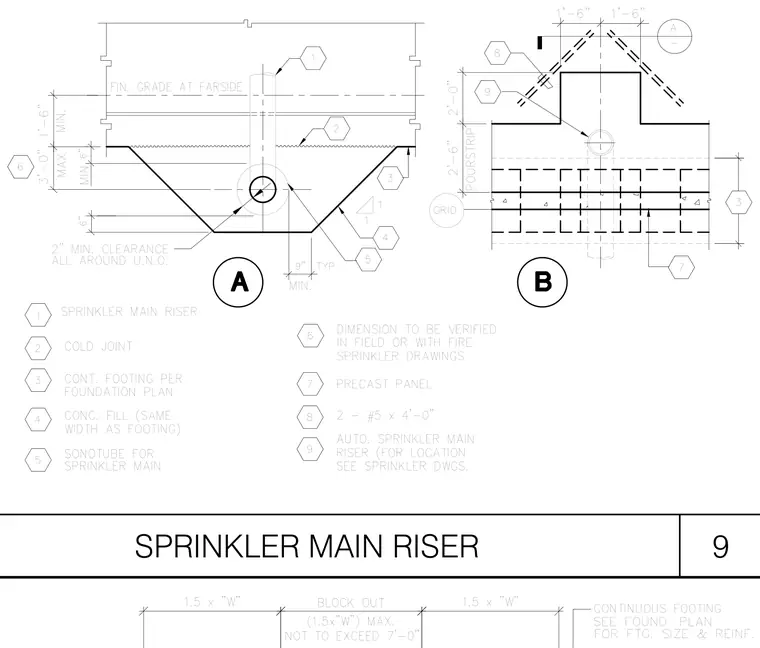

A sprinkler main riser penetrates a continuous concrete footing. The assembly incorporates a sonotube for the sprinkler main centered within a concrete fill matching the footing width, bounded by a cold joint. A two-foot-six-inch pour strip with reinforcing bars accommodates the riser location. Dimensions specify minimum clearances and offsets to be verified in the field against fire sprinkler drawings.
