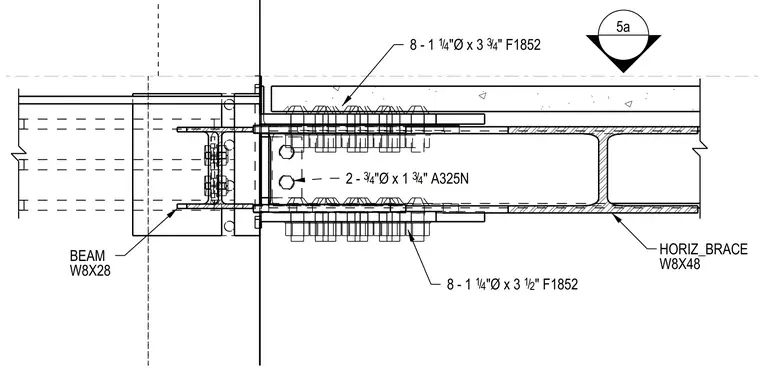

A horizontal structural steel brace member utilizing a W8x48 section connects to a W8x28 steel beam. The connection utilizes eight 1-1/4 inch diameter by 3-3/4 inch long F1852 bolts, eight 1-1/4 inch diameter by 3-1/2 inch long F1852 bolts, and two 3/4 inch diameter by 1-3/4 inch long A325N bolts.
5a BEAM W8X28 HORIZ_BRACE W8X48 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 8 - 1 1 4 / "Ø x 3 3 4 / " F1852 2 - 3 4 / "Ø x 1 3 4 / " A325N
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
