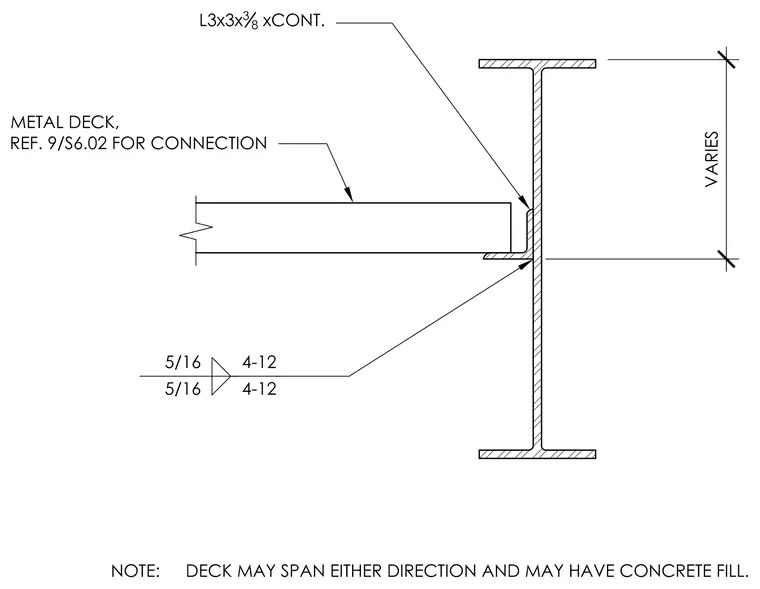

A continuous steel angle measuring L3x3x3/8 is welded to the flange of a structural steel column with five-sixteenths inch fillet welds spaced at four to twelve inches. The metal deck bears on the angle seat and is detailed with a reference note for connection requirements. A vertical dimension indicates that the positioning of the angle is variable along the column height. A general note specifies that the deck may span in either direction and may include concrete fill.
