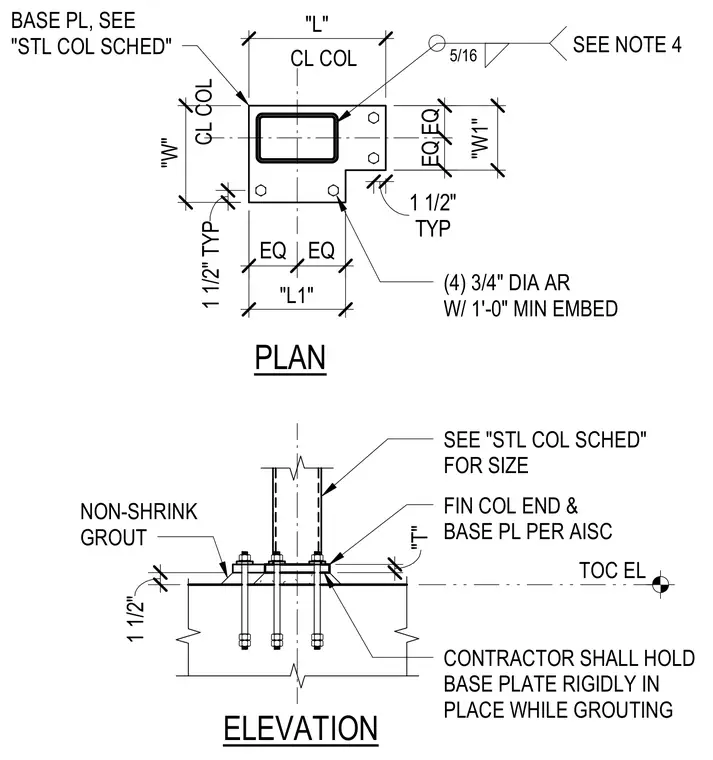

A structural steel column connects to a concrete foundation through a base plate secured by four three-quarter-inch diameter anchor rods with a one-foot minimum embedment. The column end and base plate are finished per AISC standards, and a five-sixteenths inch fillet weld secures the column to the base plate. Non-shrink grout fills the one-and-a-half-inch space beneath the base plate to the top of concrete elevation. The contractor must hold the base plate rigidly in place while grouting.
TOC EL (4) 3/4" DIA AR W/ 1'-0" MIN EMBED FIN COL END & BASE PL PER AISC NON-SHRINK GROUT SEE NOTE 4 5/16 ELEVATION PLAN SEE "STL COL SCHED" FOR SIZE CL COL CONTRACTOR SHALL HOLD BASE PLATE RIGIDLY IN PLACE WHILE GROUTING BASE PL, SEE "STL COL SCHED" CL COL 1" 17" 8" EQ EQ EQ EQ 12" 12" TYP 1 1/2" 1 1/2" TYP 1 1/2" "T" "L1" "L" "W" "W1"
