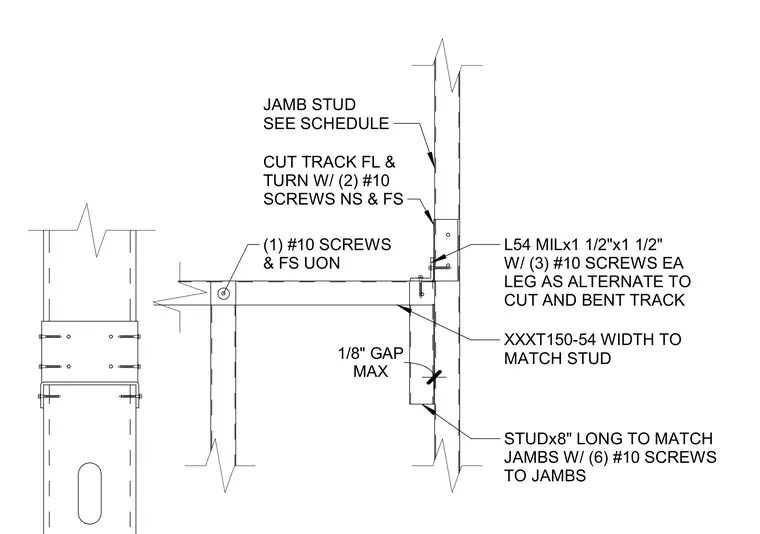

A cold-formed steel framing connection at a jamb stud utilizes an alternate clip angle configuration. The assembly incorporates a header track sized to match the stud width, secured with a cut track or a 54 mil 1-1/2 inch by 1-1/2 inch steel angle fastened with number 10 screws to each leg. An eight-inch long stud section matches the jambs and is fastened with six number 10 screws. Connections utilize number 10 screws on near and far sides with a maximum one-eighth inch gap maintained.
MAX 1/8" GAP JAMB STUD SEE SCHEDULE CUT TRACK FL & TURN W/ (2) #10 SCREWS NS & FS L54 MILx1 1/2"x1 1/2" W/ (3) #10 SCREWS EA LEG AS ALTERNATE TO CUT AND BENT TRACK (1) #10 SCREWS & FS UON XXXT150-54 WIDTH TO MATCH STUD STUDx8" LONG TO MATCH JAMBS W/ (6) #10 SCREWS TO JAMBS
