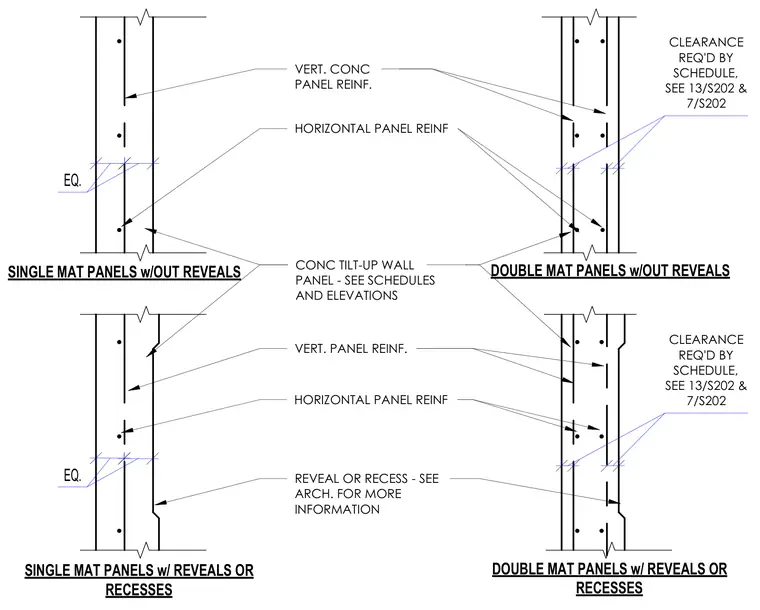

Concrete tilt-up wall panels are reinforced with vertical and horizontal reinforcement arranged in either single or double mat configurations. Panels may incorporate reveals or recesses coordinated with architectural drawings. Required clearances are noted and cross-referenced to structural drawings.
EQ. EQ. CLEARANCE REQ'D BY SCHEDULE, SEE 13/S202 & 7/S202 SINGLE MAT PANELS w/ REVEALS OR RECESSES SINGLE MAT PANELS w/OUT REVEALS DOUBLE MAT PANELS w/ REVEALS OR RECESSES DOUBLE MAT PANELS w/OUT REVEALS HORIZONTAL PANEL REINF REVEAL OR RECESS - SEE ARCH. FOR MORE INFORMATION VERT. PANEL REINF. VERT. CONC PANEL REINF. HORIZONTAL PANEL REINF CONC TILT-UP WALL PANEL - SEE SCHEDULES AND ELEVATIONS CLEARANCE REQ'D BY SCHEDULE, SEE 13/S202 & 7/S202 W — W W - A Al
