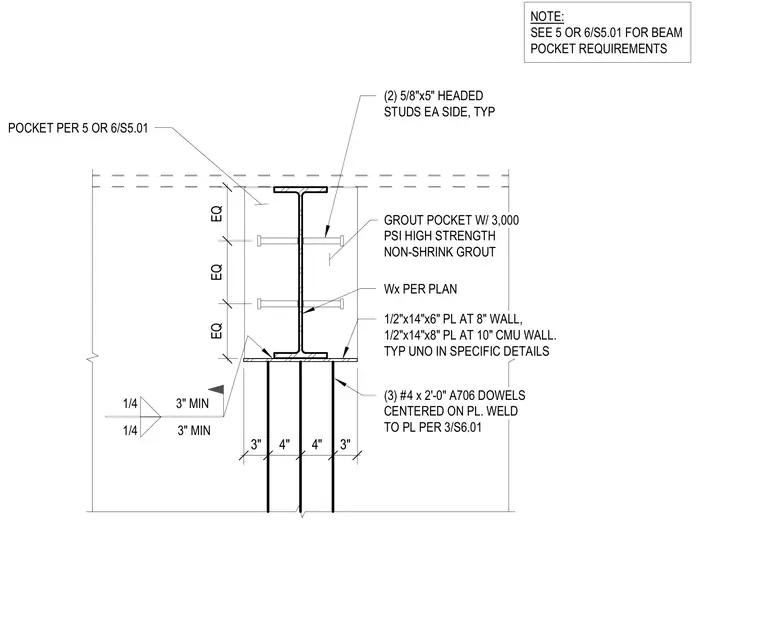

A structural steel beam pocket bears on a base plate embedded in a masonry wall. The assembly features a steel section sized per plan welded to a half-inch by fourteen-inch plate, dimensioned six inches wide at eight-inch walls or eight inches wide at ten-inch walls. Three number four by two-foot ASTM A706 dowels are centered on the plate and welded per structural sheet S6.01 with quarter-inch welds. Two five-eighths-inch by five-inch headed studs are welded to each side of the web. The entire beam pocket is filled with three-thousand PSI high-strength non-shrink grout.
GROUT POCKET W/ 3,000 PSI HIGH STRENGTH NON-SHRINK GROUT Wx PER PLAN 1/2"x14"x6" PL AT 8" WALL, 1/2"x14"x8" PL AT 10" CMU WALL. TYP UNO IN SPECIFIC DETAILS (3) #4 x 2'-0" A706 DOWELS CENTERED ON PL. WELD TO PL PER 3/S6.01 (2) 5/8"x5" HEADED STUDS EA SIDE, TYP POCKET PER 5 OR 6/S5.01 1/4 3" MIN 1/4 3" MIN NOTE: SEE 5 OR 6/S5.01 FOR BEAM POCKET REQUIREMENTS EQ EQ EQ 3" 4" 4" 3"
