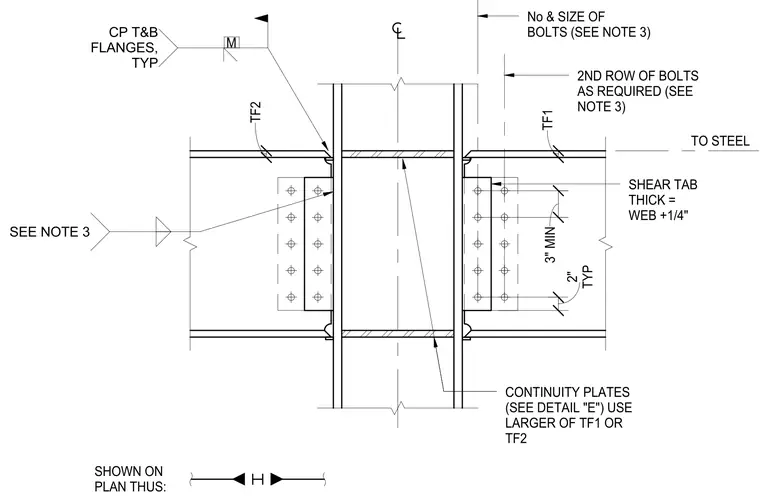

This connection detail joins a steel beam to a structural steel column flange using a bolted single plate shear tab and continuity plates at the top and bottom flanges. The shear tab thickness is specified as the beam web thickness plus one-quarter inch. Bolt size, quantity, and second row requirements are determined per project note three, maintaining standard edge distances and a three-inch minimum dimension. Continuity plates at the top and bottom column flanges are sized using the larger of dimensions TF1 or TF2, with typical field welding indicated.
TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED (SEE NOTE 3) CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICK = WEB +1/4" TF2 TF1 3" MIN TYP 2" SHOWN ON PLAN THUS: SEE NOTE 3 CP T&B FLANGES, TYP M
