Structural · S-6D35S

Rectangular Penetration

Materials

Steel

Elements

Beams Connections / Plates Roof / Floor Openings

Connections

Welded Connection

About this detail

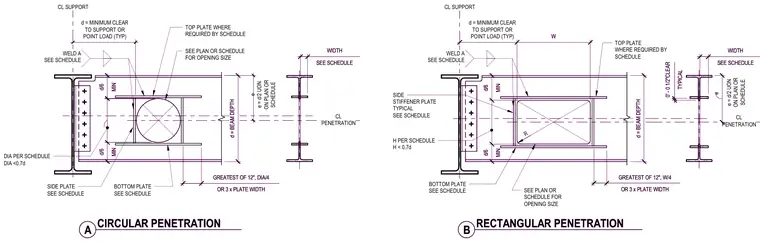

These structural steel details illustrate circular and rectangular web penetrations reinforced with top plates, bottom plates, and side plates welded to the beam web. The opening dimensions, plate sizes, and weld sizes are specified per the structural schedule. Edge distances and clearances are dimensioned relative to the beam depth and support centerlines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
