A wide-flange beam frames into a girder web utilizing connection plates sized per schedule on both sides. The connection plates are bolted with high-strength bolts placed along the centerline per schedule, maintaining a two-and-a-half-inch distance from the centerline and standard minimum and maximum clearances. Stiffener plates feature clipped corners to fit the column or girder web k-dimension, leaving the designated k-zone unwelded. Connection plates are extended at braced frame or moment frame girder locations per the structural design.

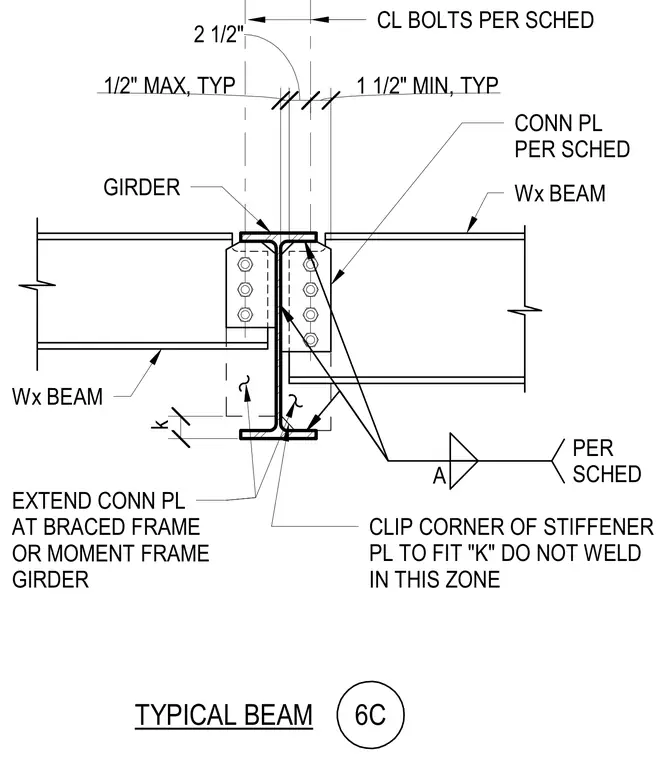

TYPICAL BEAM GIRDER EXTEND CONN PL AT BRACED FRAME OR MOMENT FRAME GIRDER CLIP CORNER OF STIFFENER PL TO FIT "K" DO NOT WELD IN THIS ZONE PER SCHED CONN PL PER SCHED CL BOLTS PER SCHED A k 2 1/2" 1 1/2" MIN, TYP 1/2" MAX, TYP 6C Wx BEAM Wx BEAM
