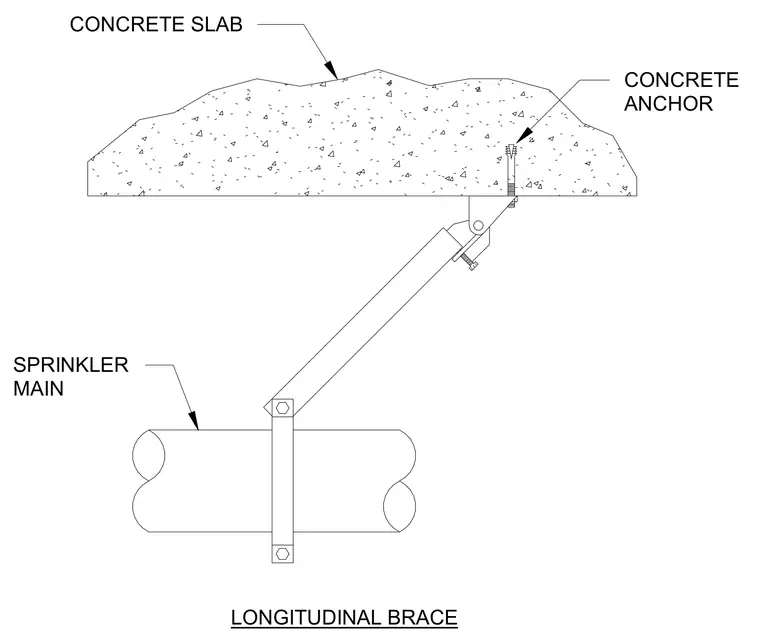

A longitudinal seismic brace assembly connects a sprinkler main to an overhead concrete slab. The assembly uses a concrete anchor embedded directly into the slab to secure the upper brace attachment. A structural brace strut extends downward to clamp around the sprinkler main pipe.
